Left Fuel Tank Assembly

Left fuel tank has been assembled and sealed with proseal, with same exact sequence and procedure as the righ wing.

Left Fuel Tank Assembly

We finished assembling, and sealing the left wing fuel tank. The process was pretty straightforward with sealed rivets, and pro-seal fuel tank sealent in between the mating surfaces.

Photos

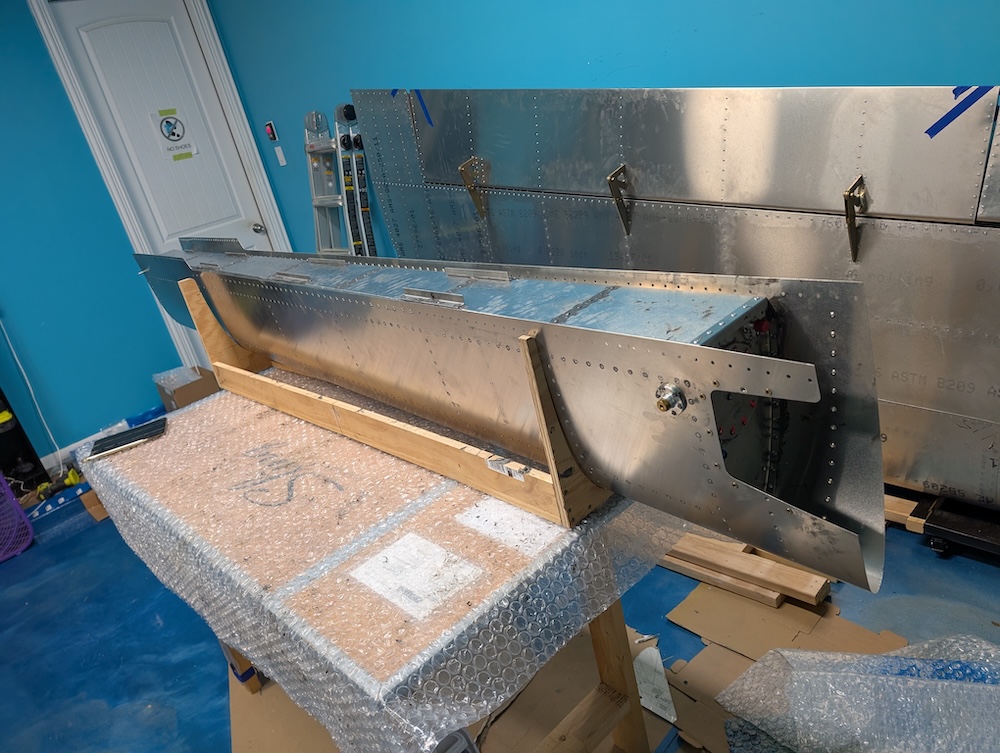

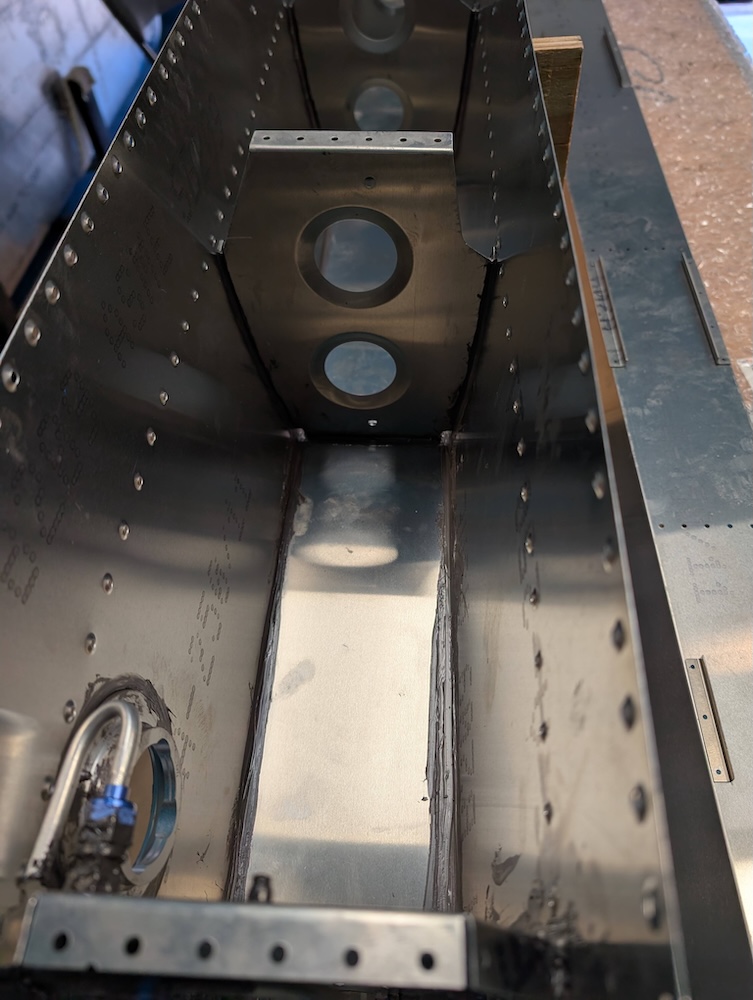

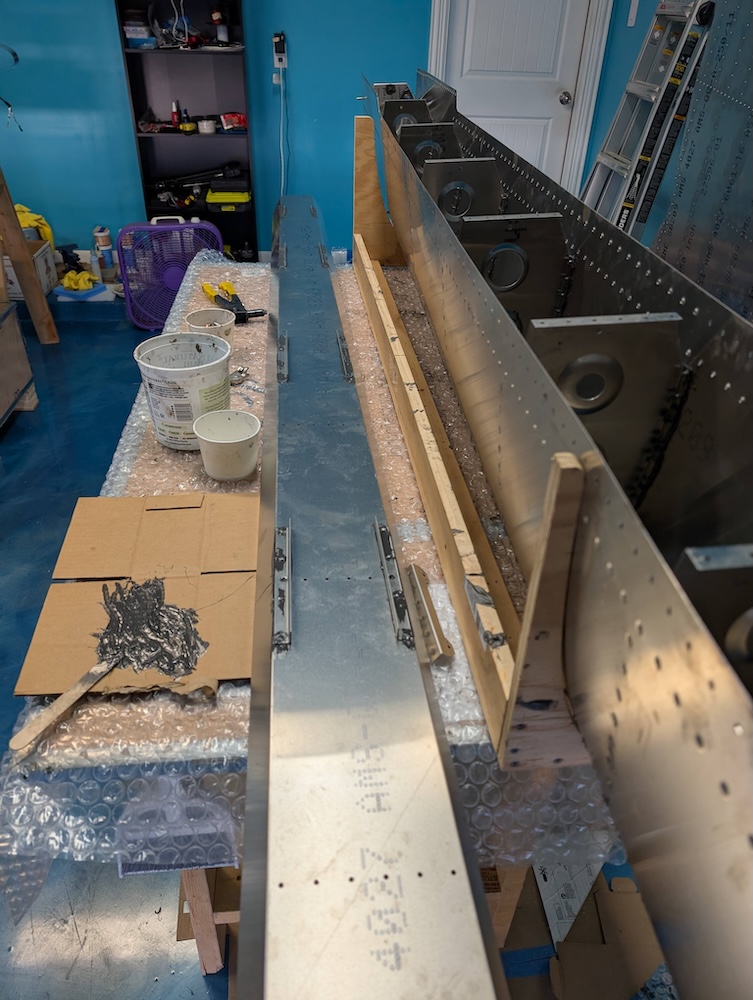

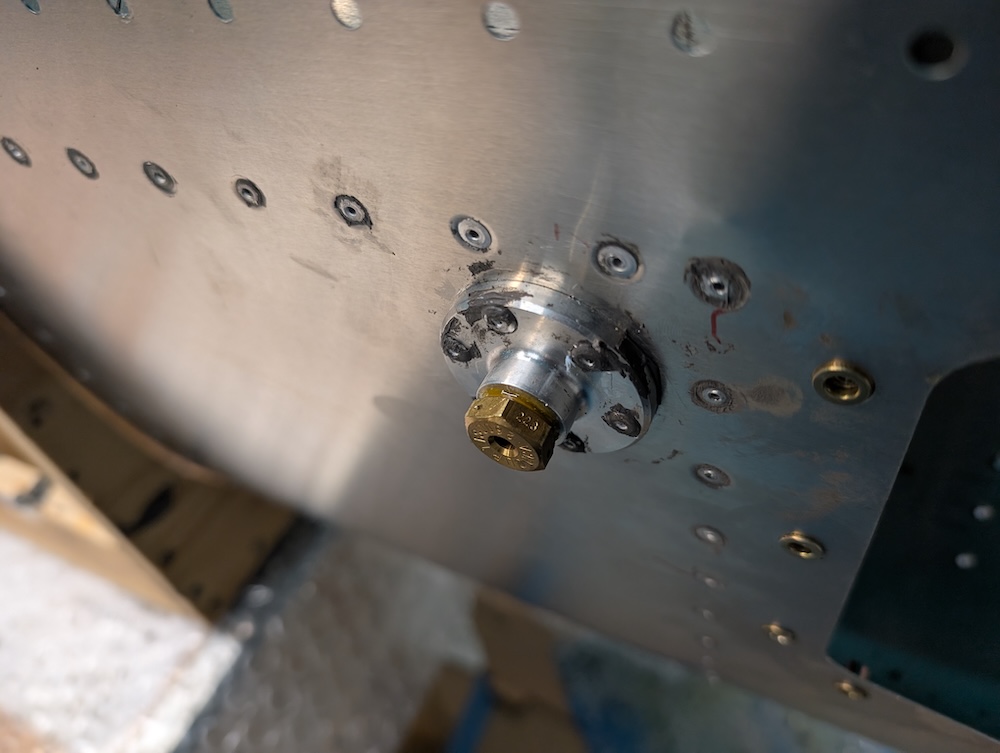

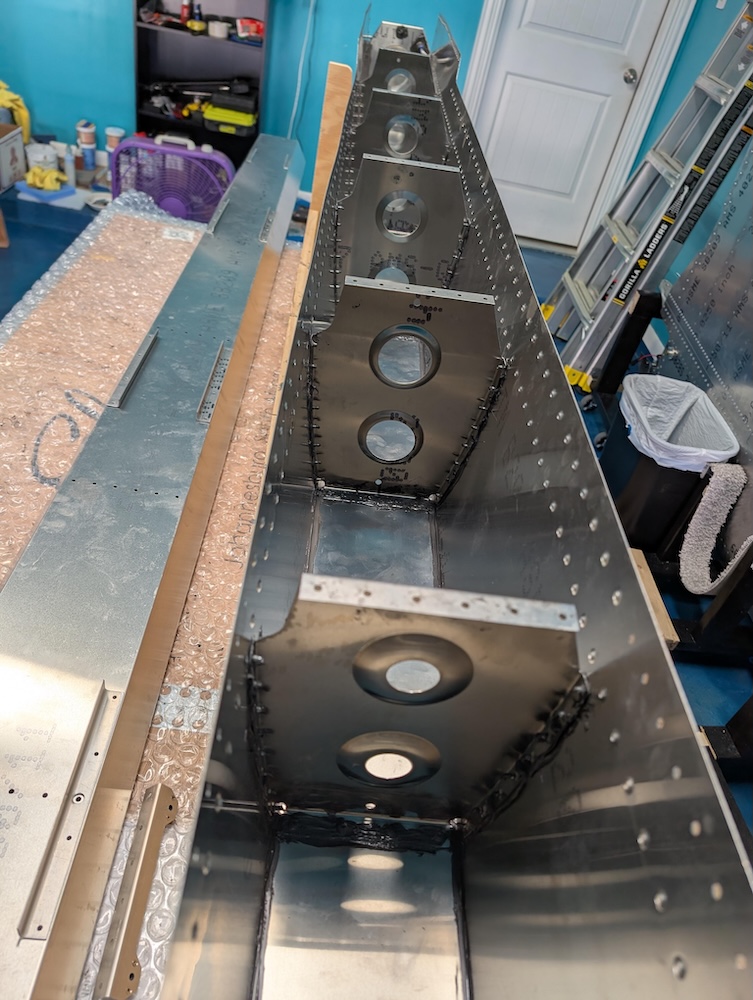

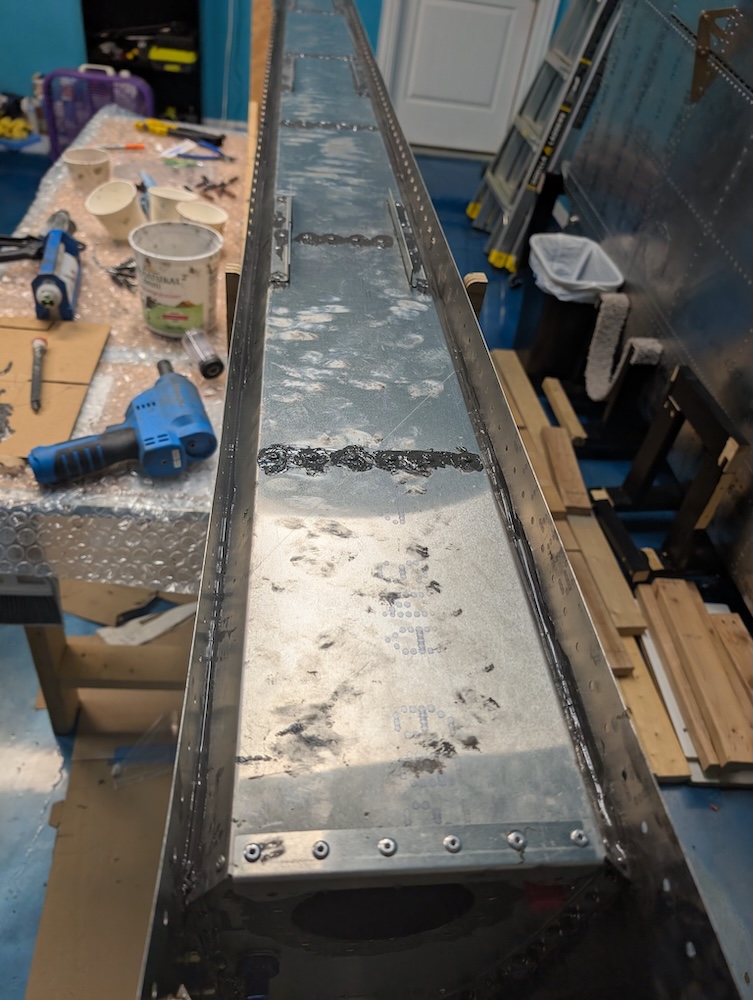

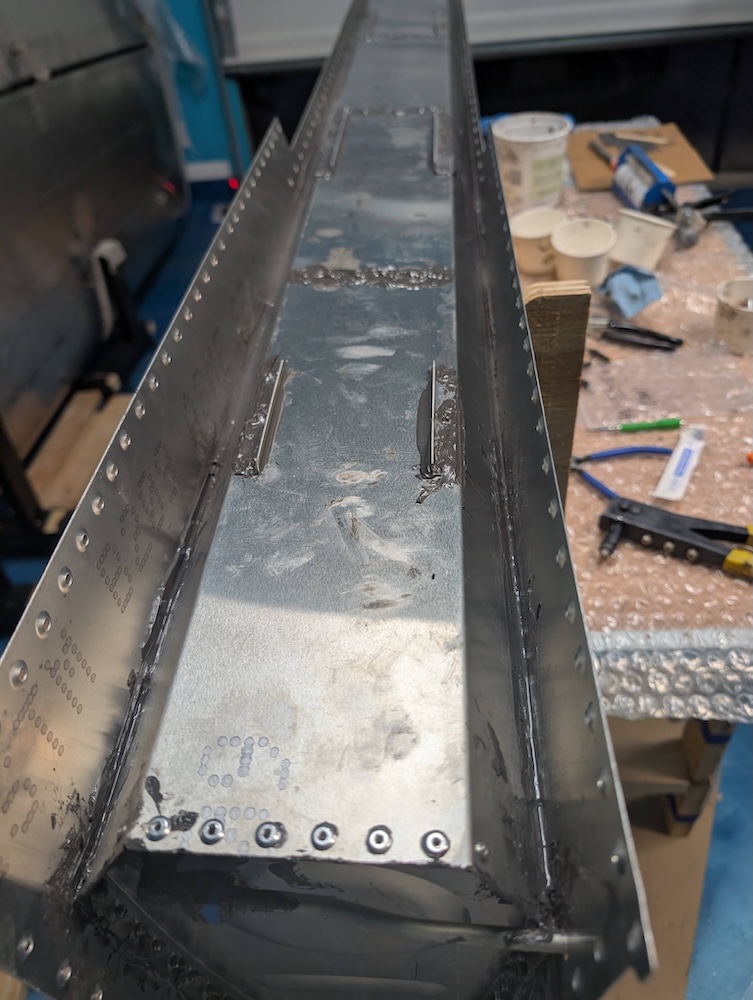

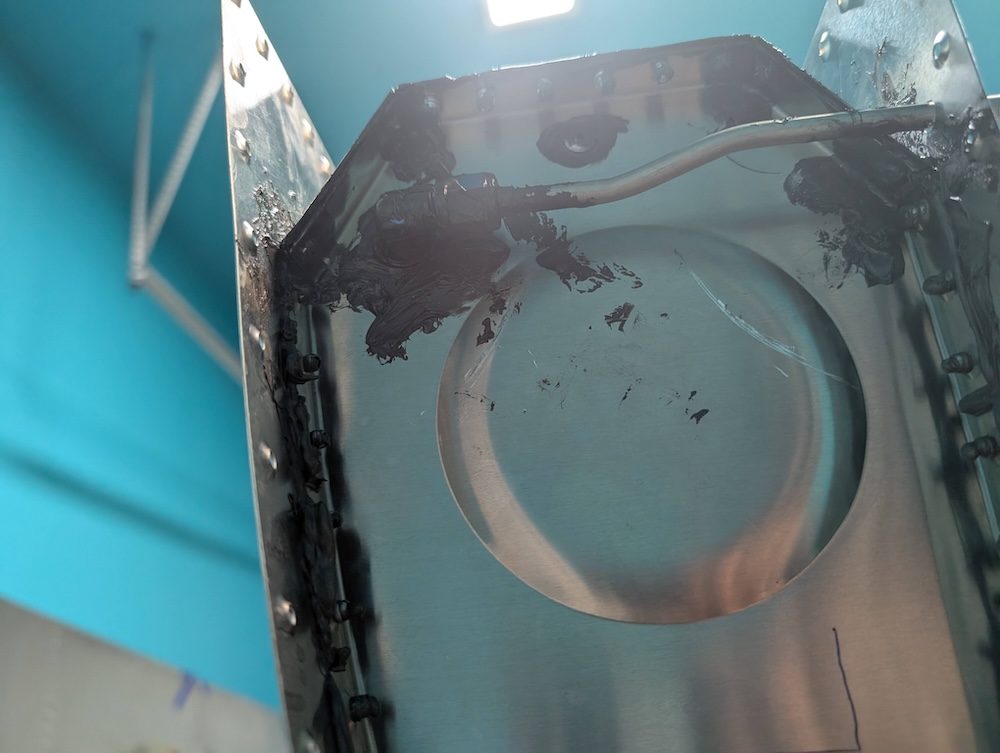

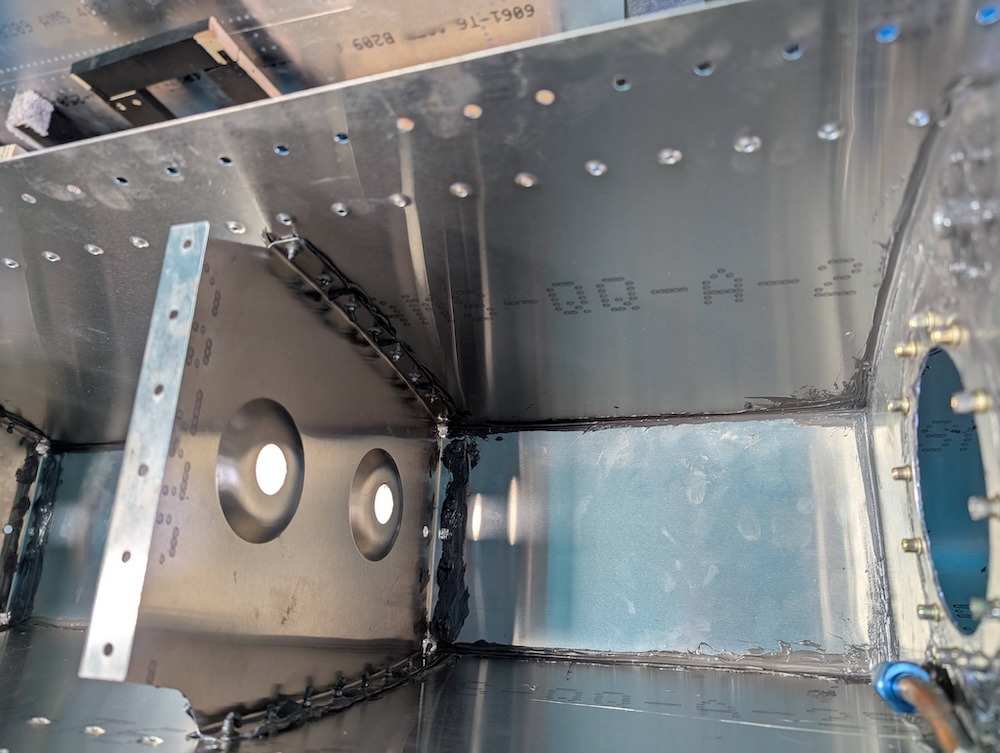

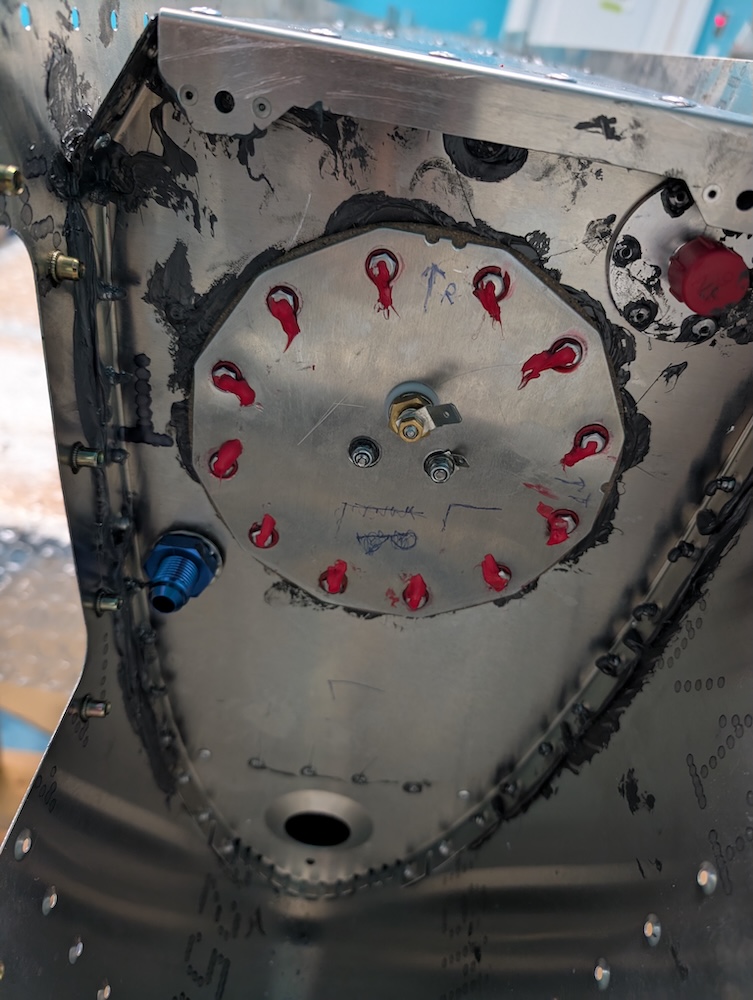

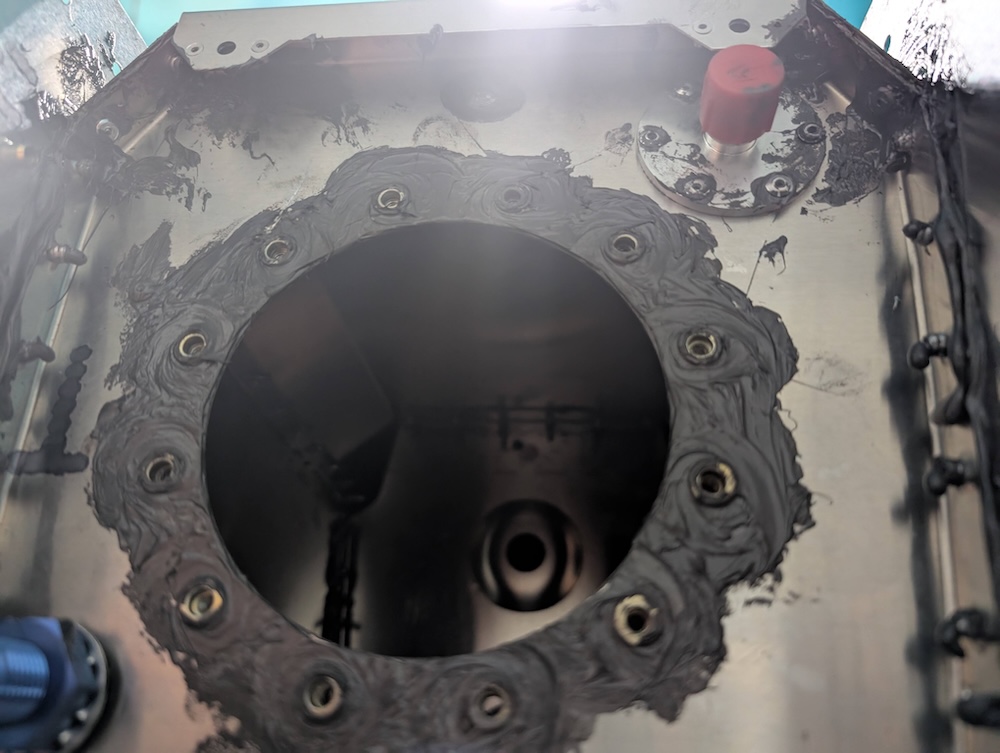

seal-1 Leading edge sealing. seal-2 Leading edge sealing. seal-3 Leading edge sealing. seal-4 Leading edge sealing. seal-5 Tank tip sealing, trailing edge. seal-6 Trailing edge sealing. seal-7 Trailing edge sealing. seal-8 Fuel level sender plate sealing. seal-9 Tank assembly complete. seal-10 Drain port installation. seal-11 Fuel sender plate installation.
