Left Wing Lower Skin

Left wing lower skin has been assembled, and riveted together.

Left Wing Lower Skin

We finished riveting the lower skin on the left wing skeleton, additionally, the rivet holes were filled in the end. The assembly process was very straightforward, nothing complicated, it involved dimpling at the relevant holes first, then clecoeing, riveting, and filling the rivet holes in the end.

Photos

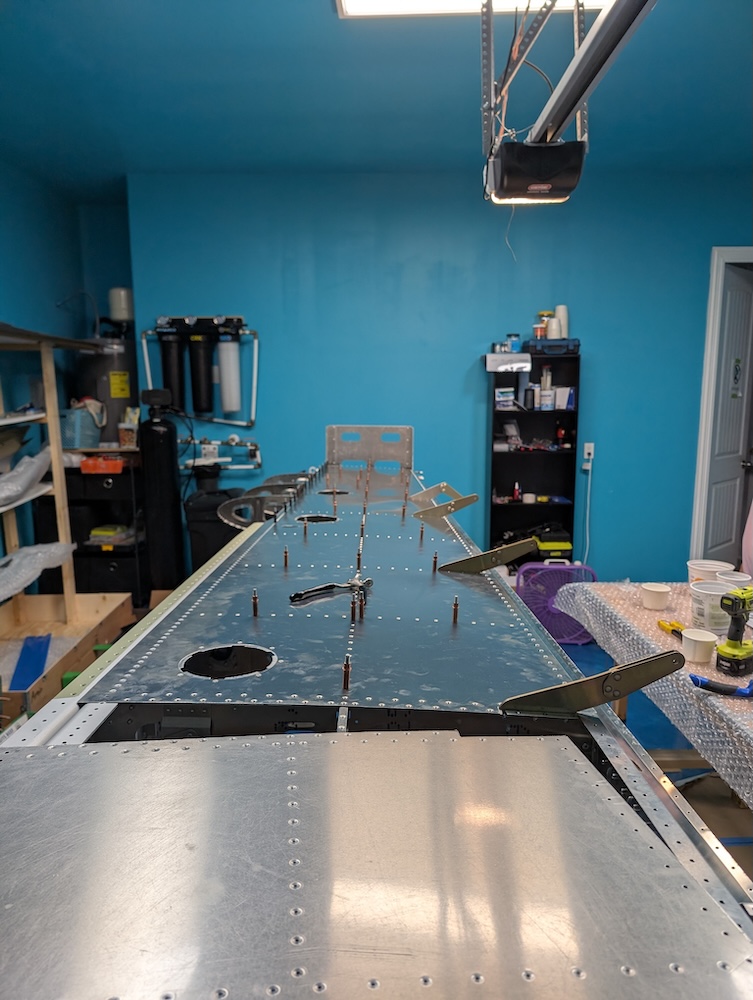

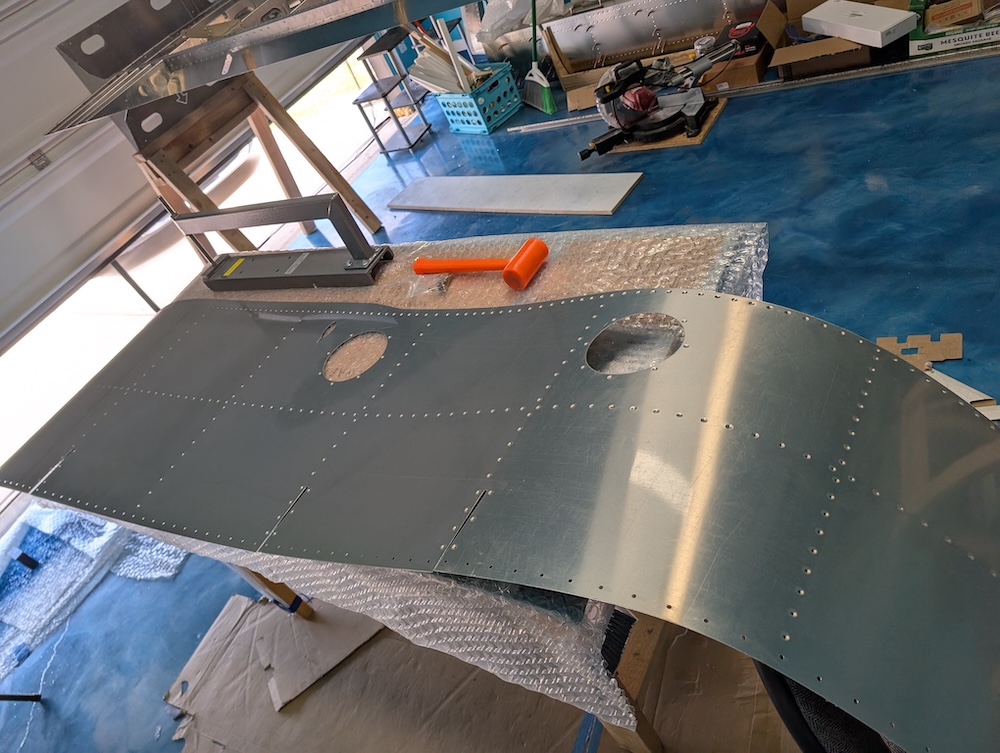

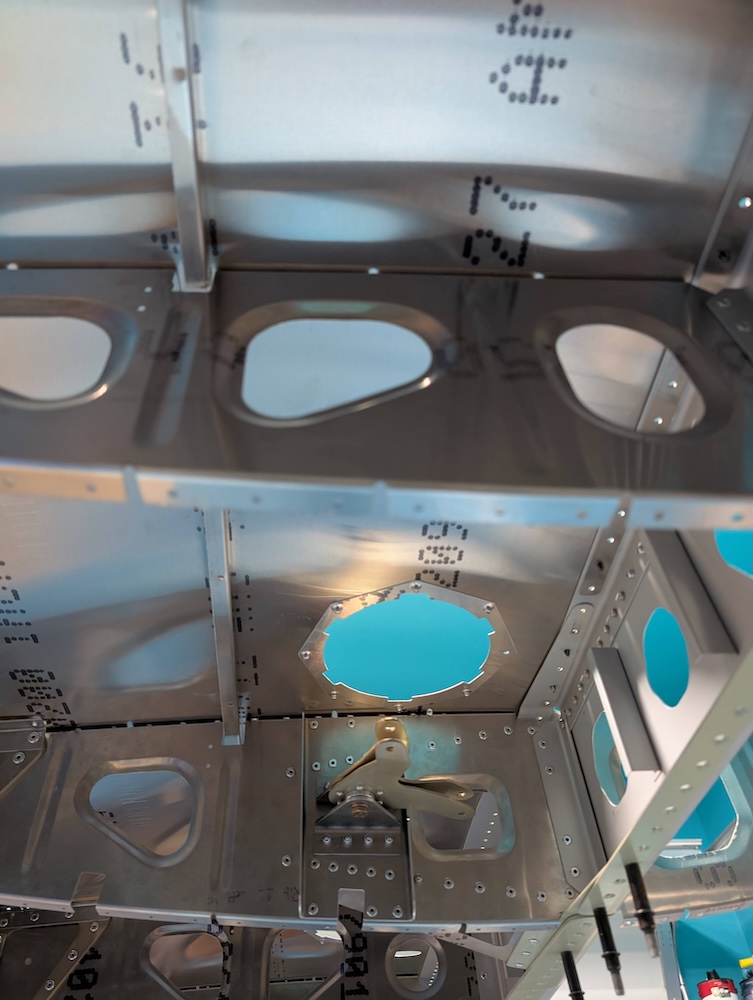

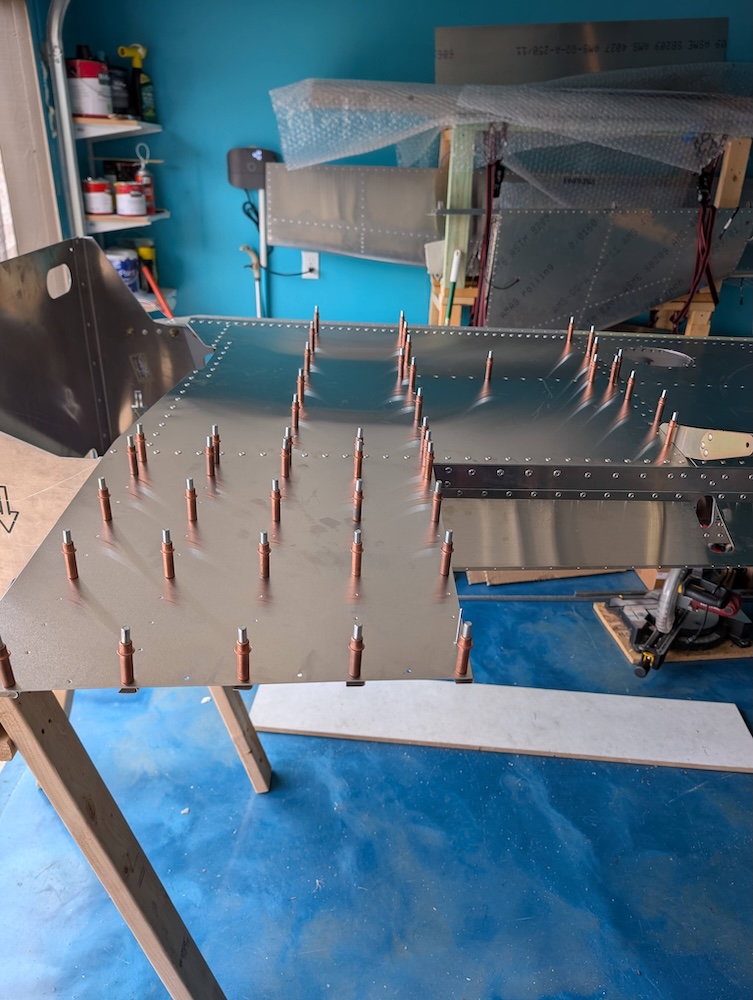

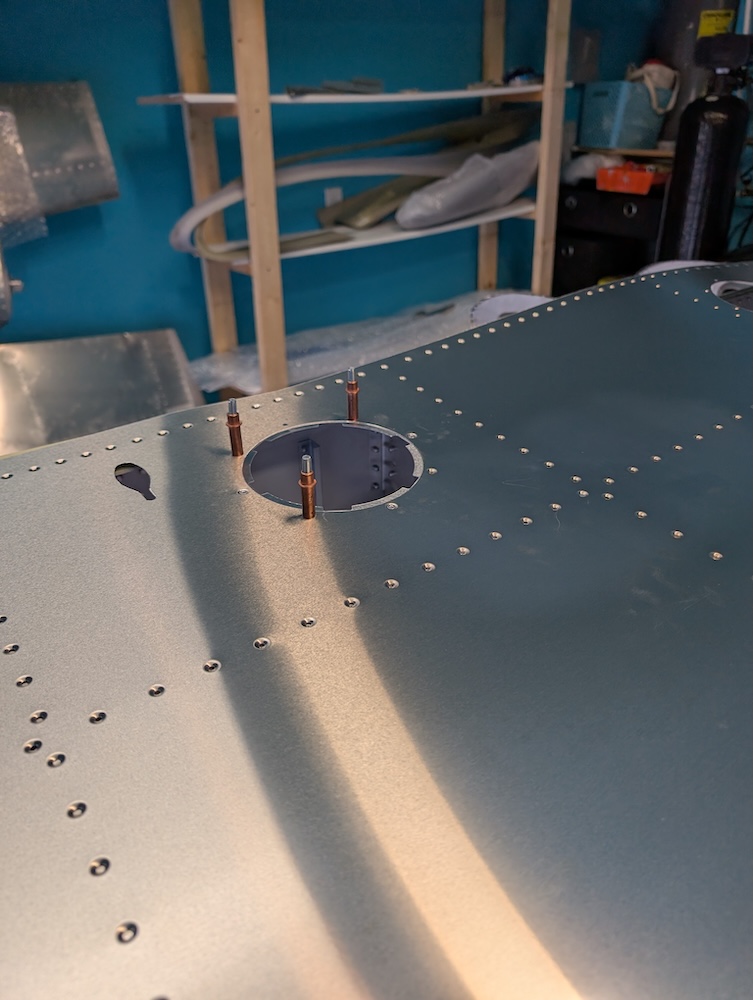

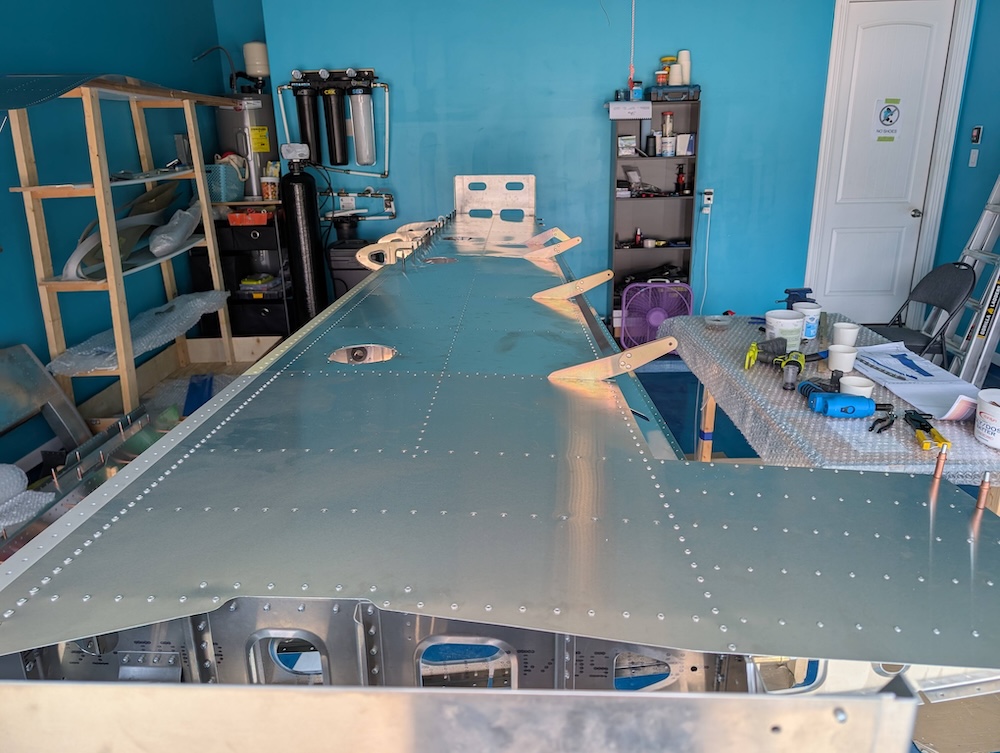

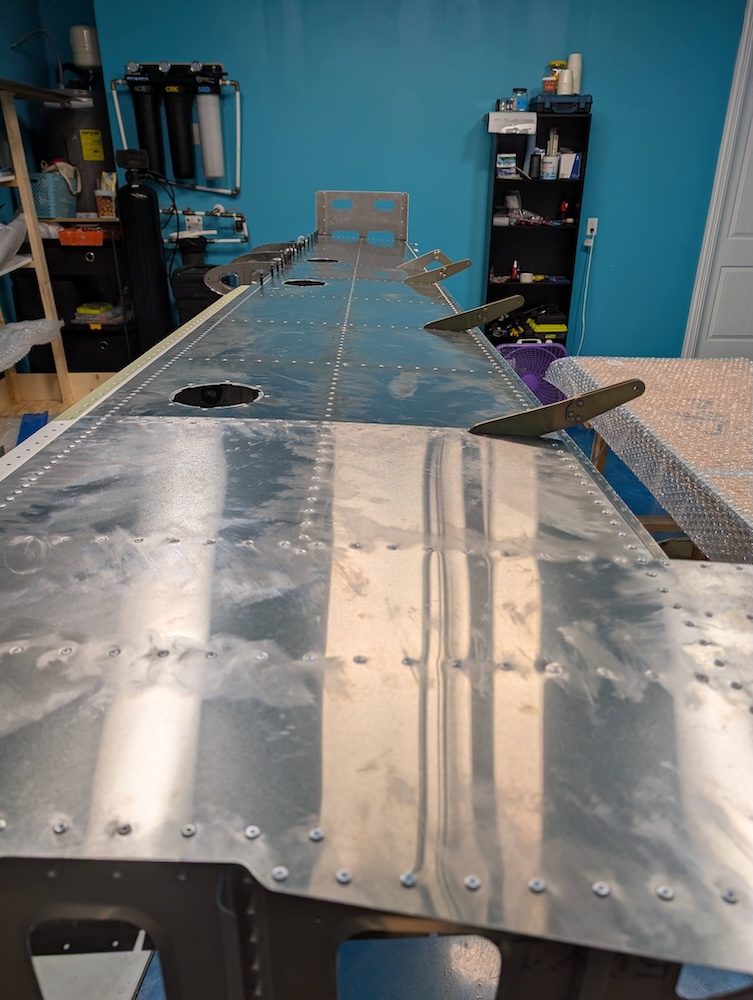

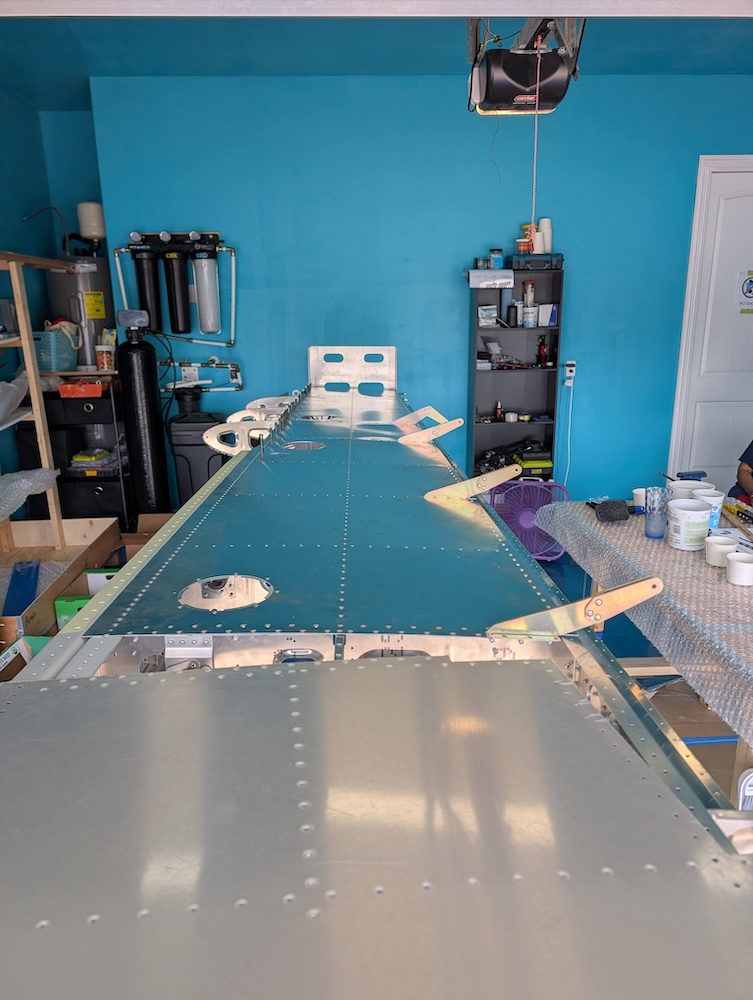

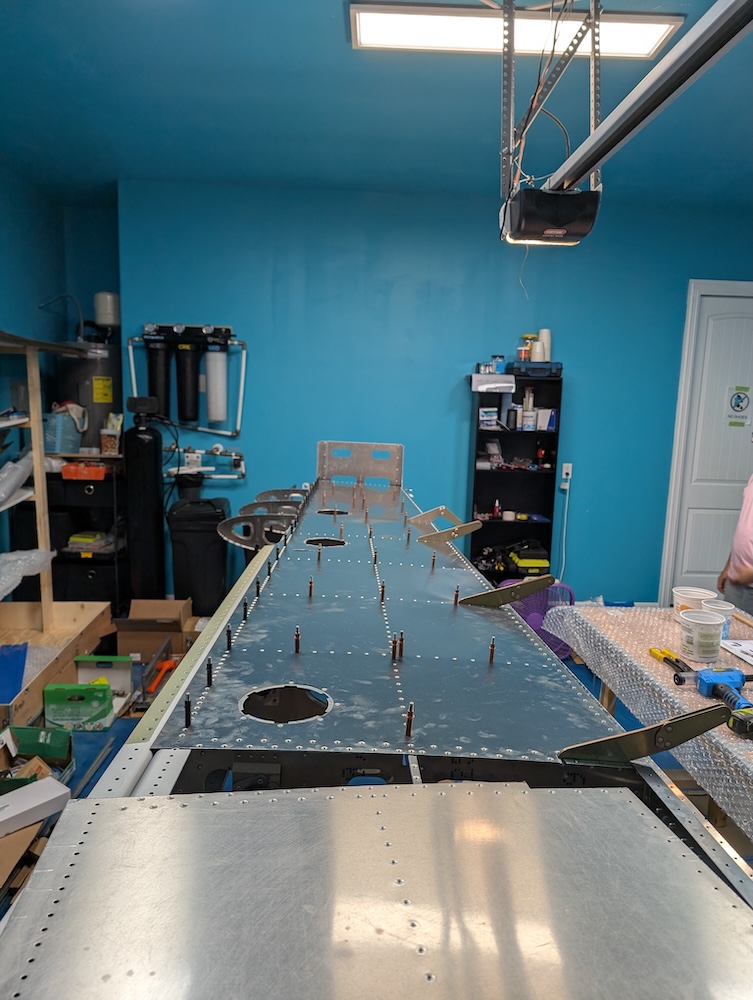

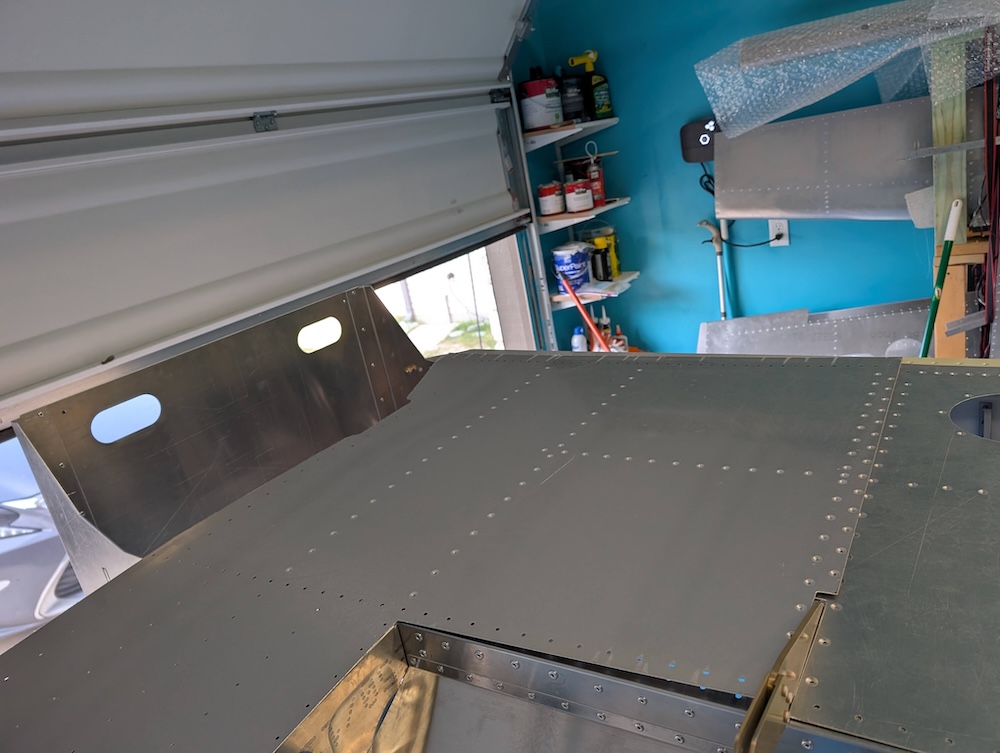

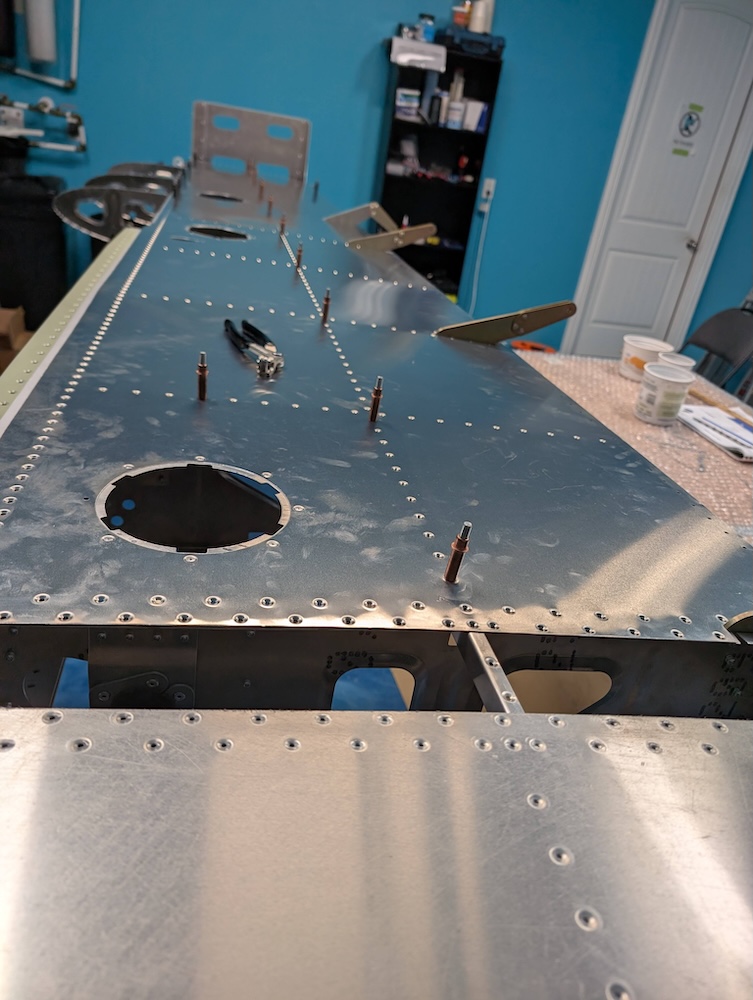

attach-1 Main skin section dimpled. attach-2 Root skin section dimpled. attach-3 Inspection hatch doubler frame. attach-4 Inspection hatch doubler frame riveted. attach-5 Skin clecoed, viewed from top of the wing. attach-6 Trailing edge riveted. attach-7 Leading edge riveted. attach-8 Main skin section riveted. attach-9 Root skin section clecoed. attach-10 Root skin section riveted. attach-11 Rivet holes filled.
