Left Wing Misc Work + Jig Removal
Some left wing parts such as fuel pump as well as end rib has been installed along with removing from the jig.
We finished installing some left wing parts such as end rib as well as fuel pump and the rib holding it. Additionally, the wing was removed from the jig as well. The assembly was pretty straightforward, very similar to the right wing.
Fuel Pump
The fuel pump was attached to the fuel tank root rib, same as the right wing.

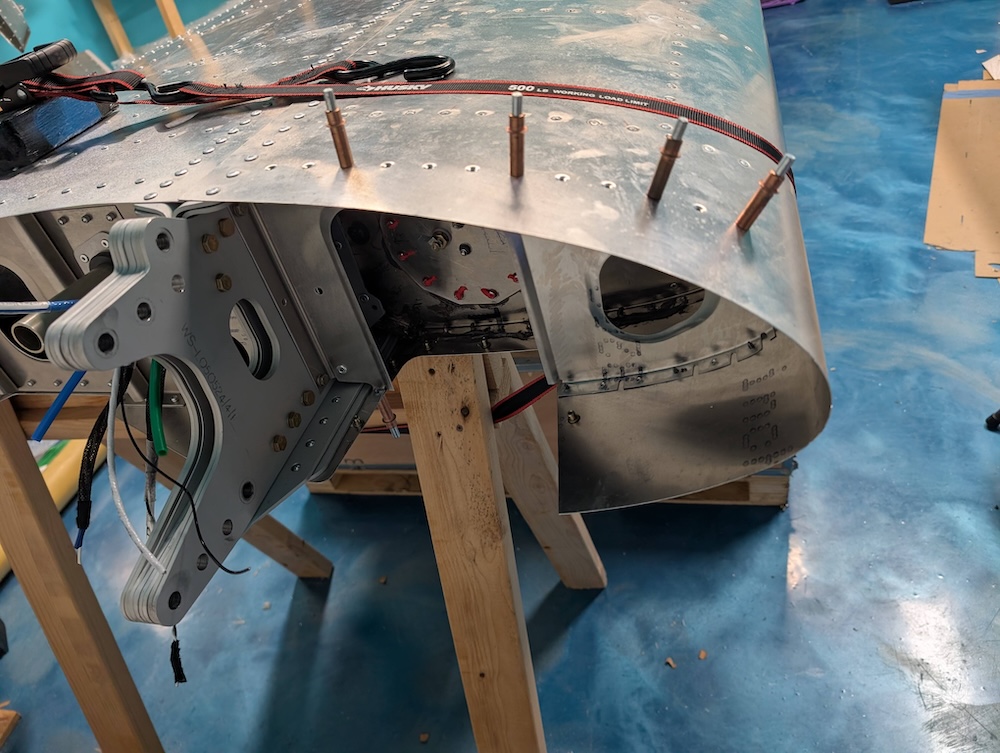

Fuel tank root rib clecoed.

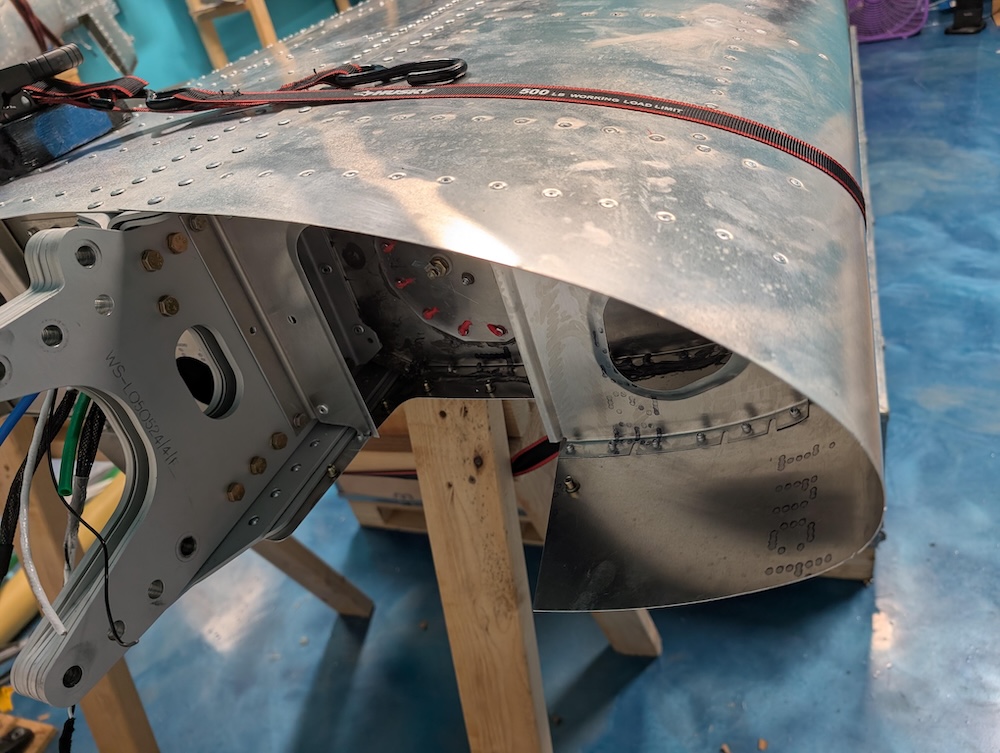

Fuel tank root rib riveted.

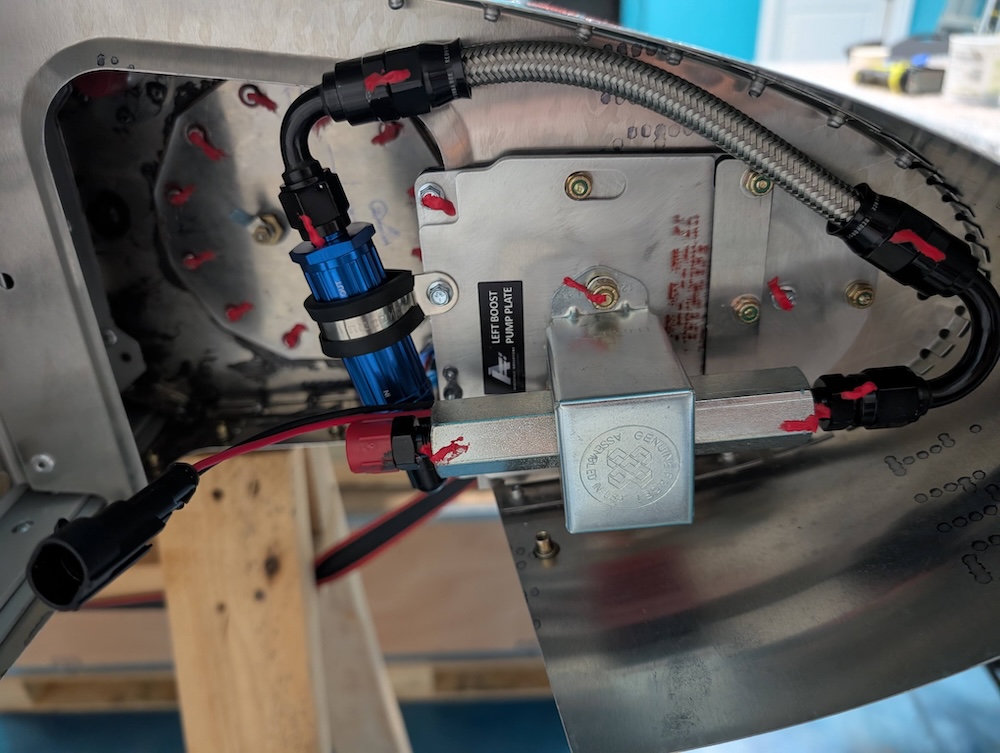

Fuel pump installed.
End Rib
Riveting the end rib was straightforward, same as the right wing, similarly it was painted prior to assembly.

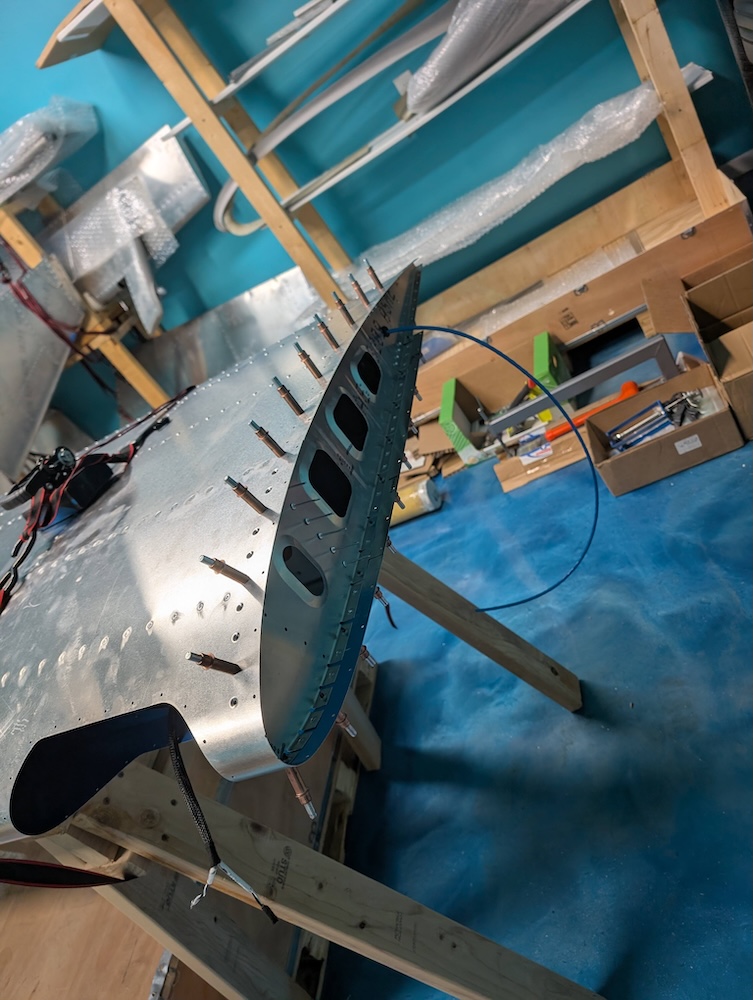

End rib clecoed.

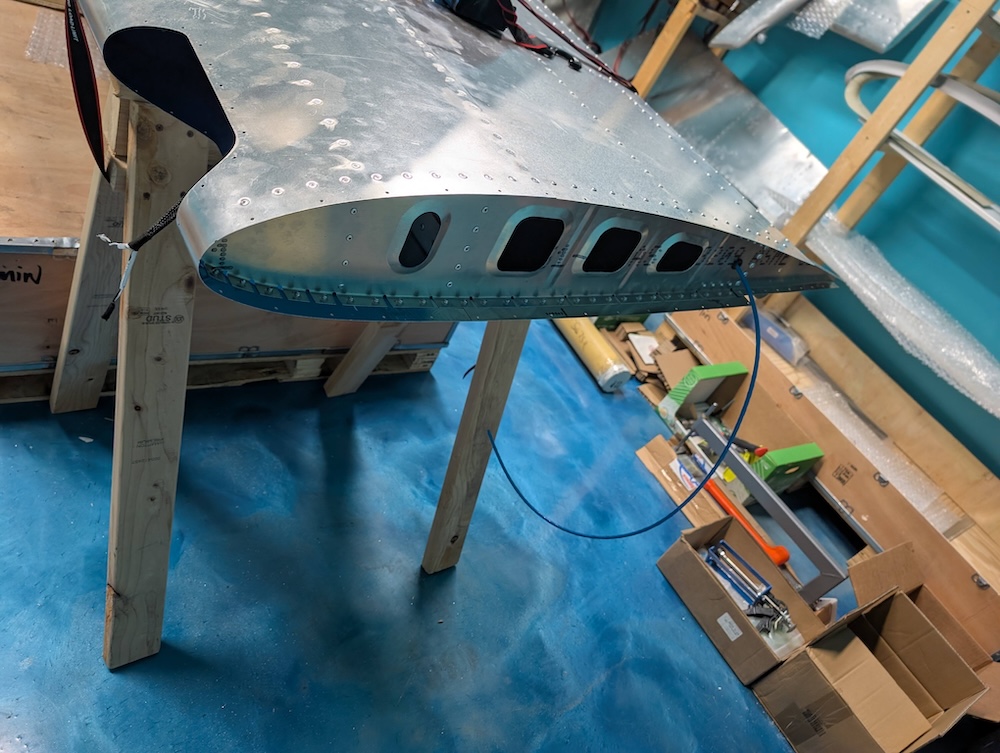

End rib riveted.
Jig Removal
The wing was also removed from the jig, and some of the rivets which were blocked by the jig have been riveted as well.

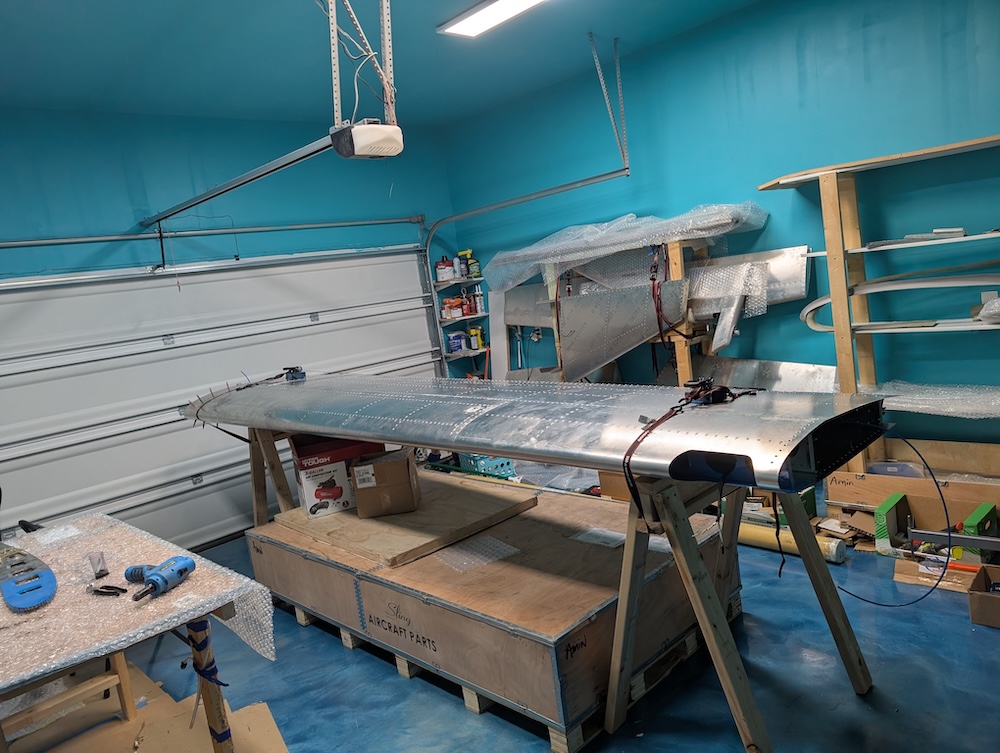

Left wing on the wood stands without jig.
Riveted some joints which were blocked by the jig.
Left wing on the wood stands without jig.
