Left Wing Upper Skin + Landing Light Skin
Left wing upper skin and landing light skin have been riveted to the wing structure.
We finished dimpling, and riveting the upper skin as well as the landing light skin to the wing structure. Additionally, some parts which cannot be accessible after such as the inside of the landing light area was painted.
Upper Skin

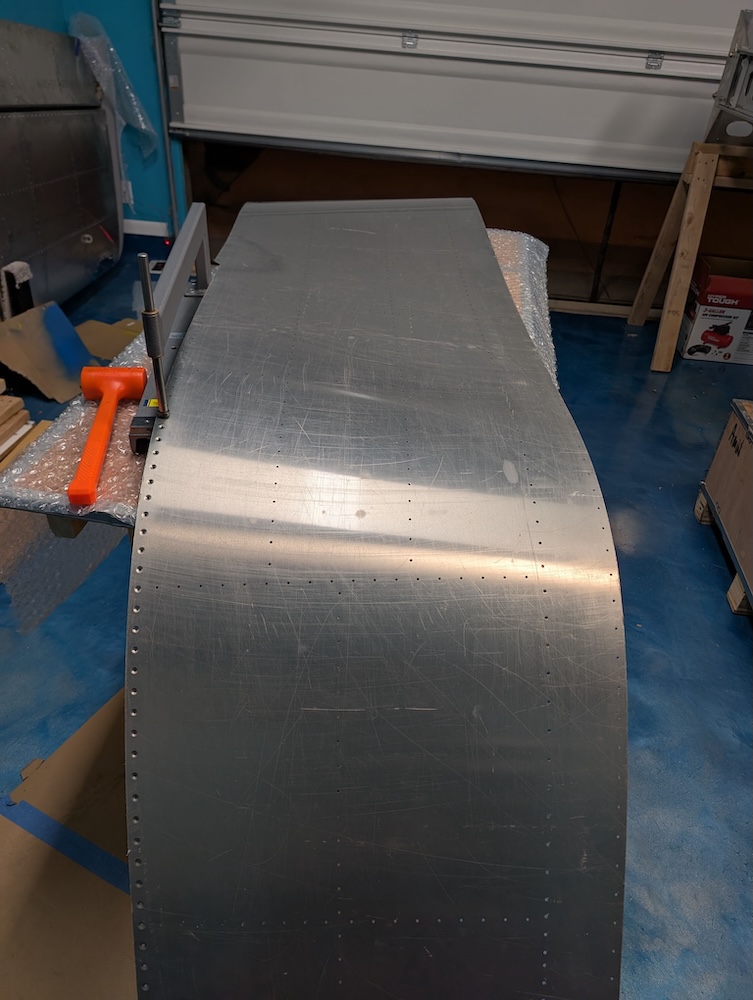

Assembling and riveting the upper skin was pretty straightforward, the strategy to rivet the leading and trailing edge boundary first, then for the center rivets, go from root to the tip. Dimpling the upper skin.

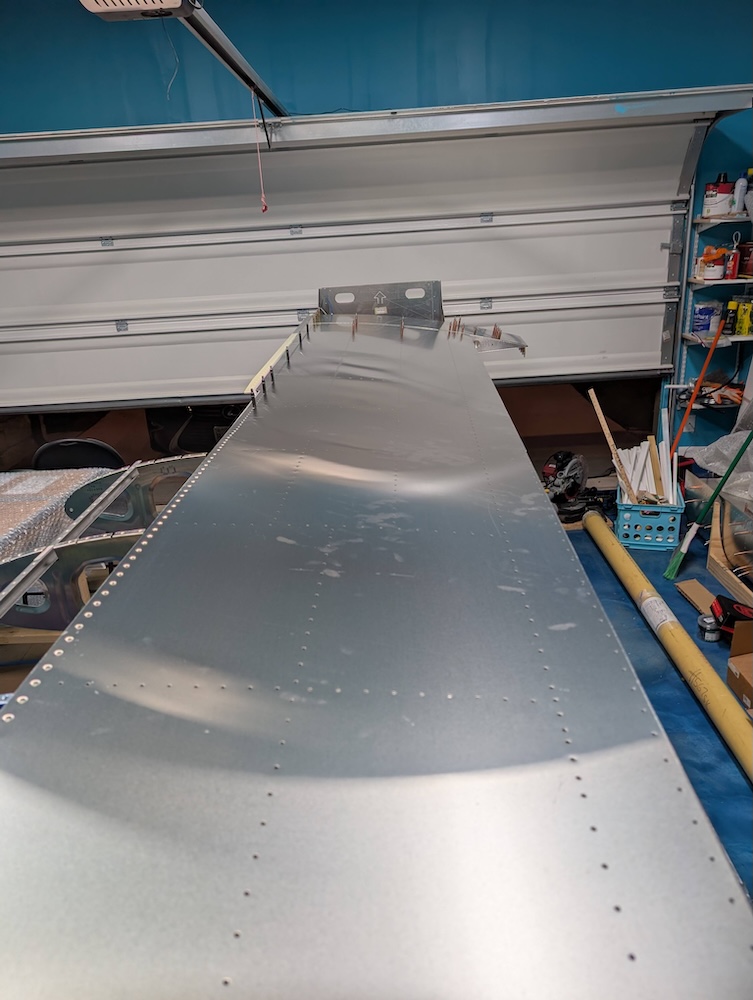

Upper skin root clecoed.
Upper skin root riveted.

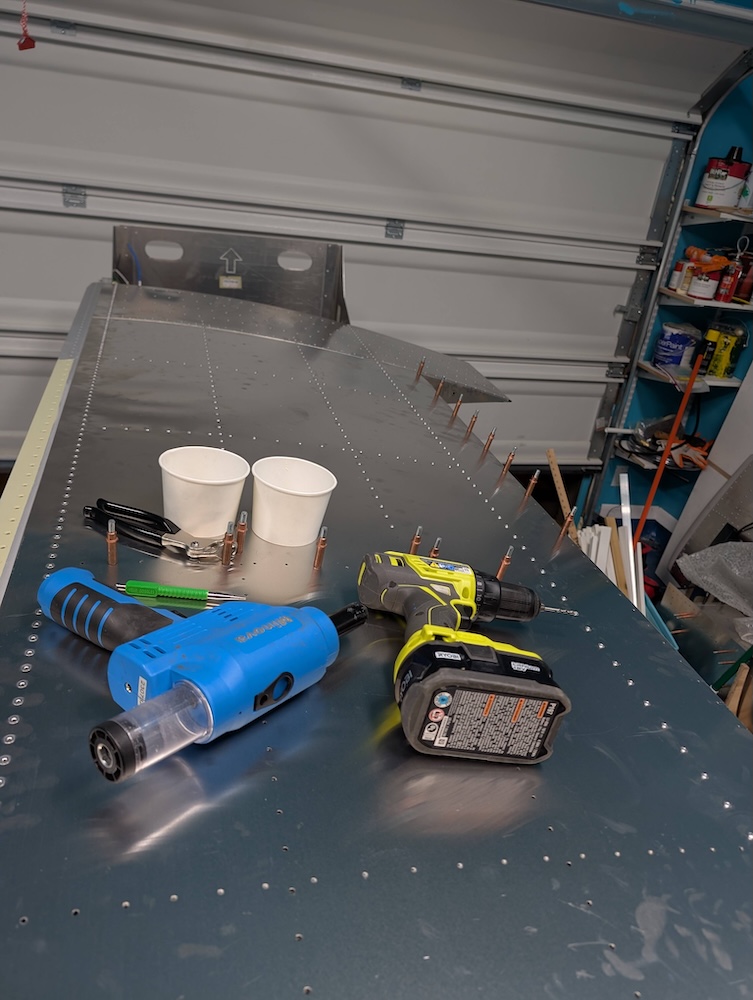

Upper skin riveting, cont’d.
Upper skin riveting, cont’d.

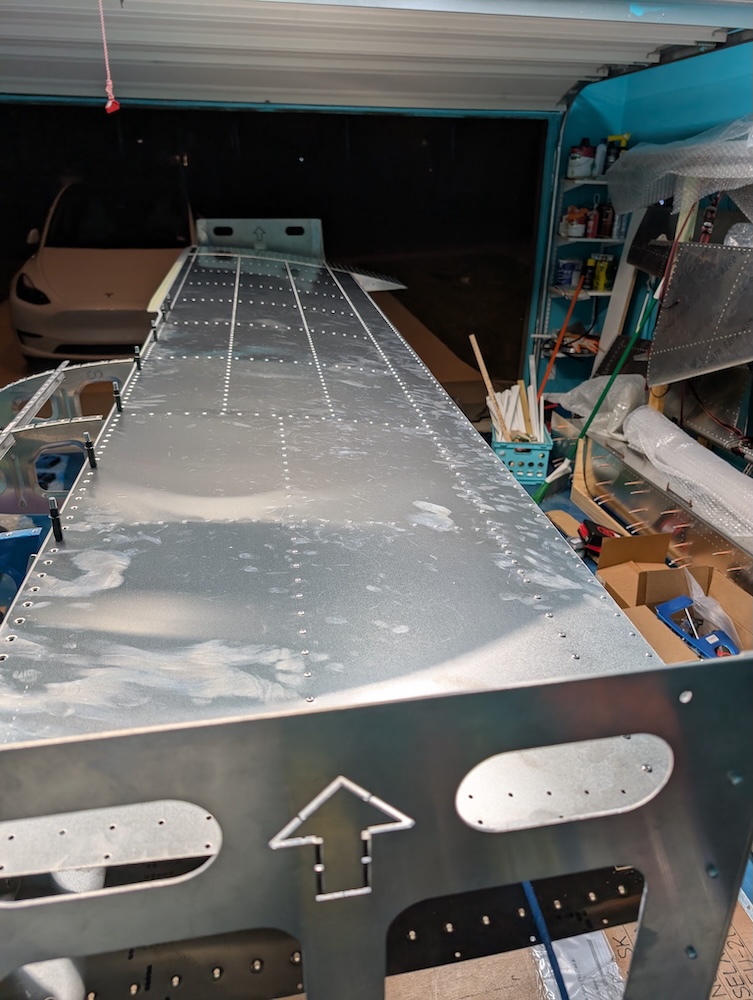

Upper skin riveted.
Landing Light Skin

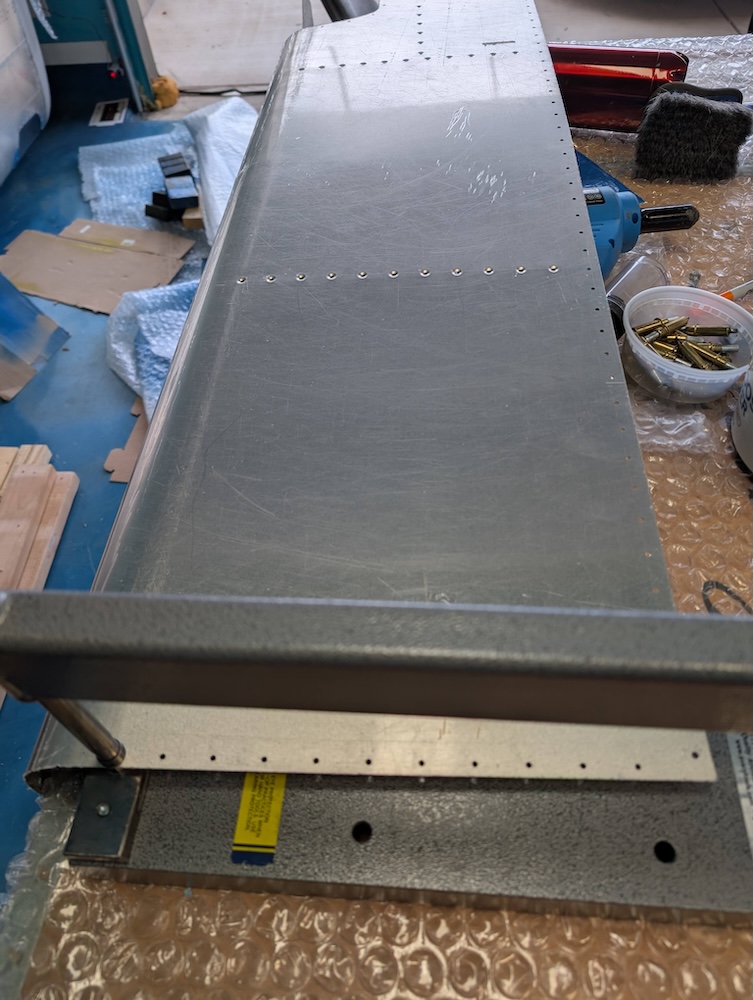

Landing light skin was also straightforward to rivet, the skin section was bent properly, however some tow strap also had to be used in order to hold the skin in place while clecoeing the assembly. Landing light skin dimpled.

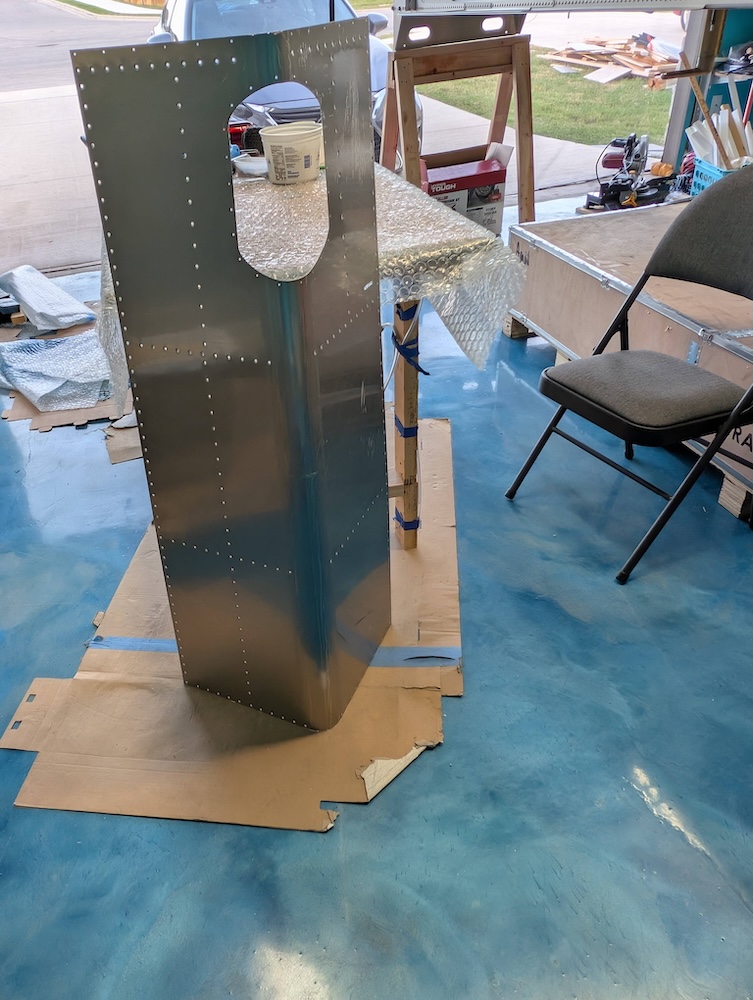

Landing light skin dimpled.

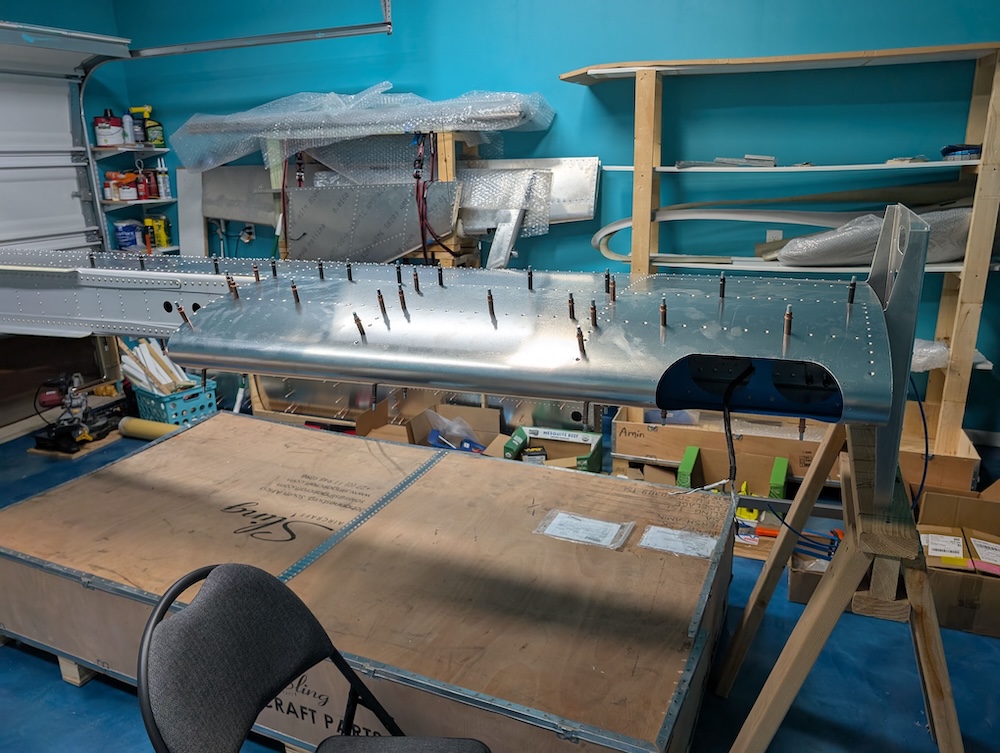

Landing light skin clecoed.

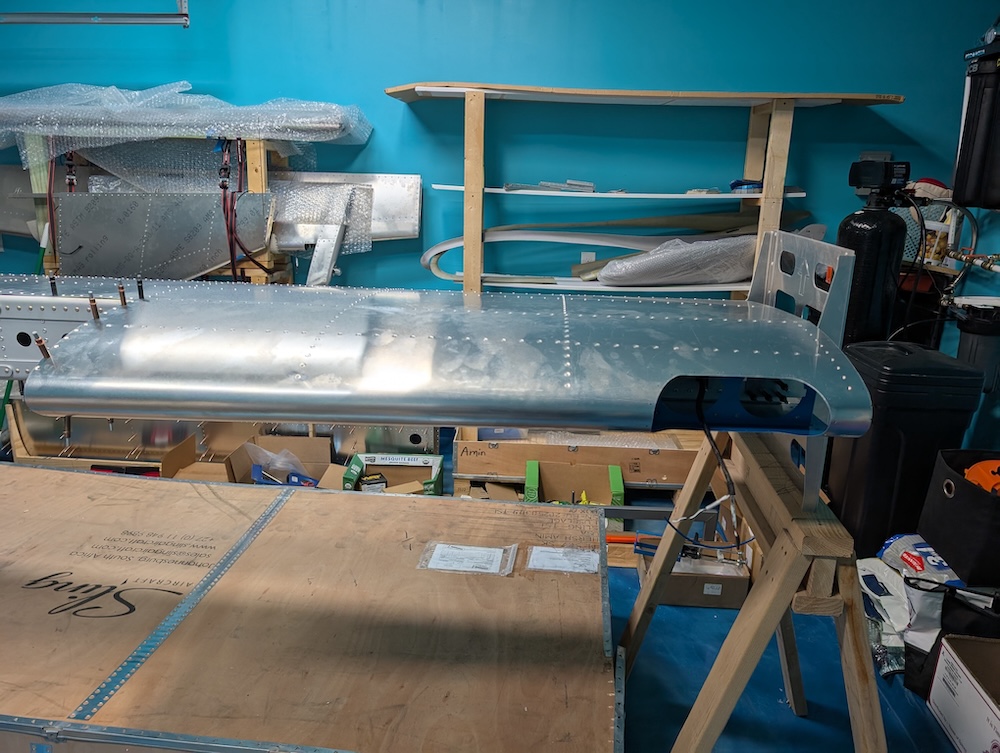

Landing light skin riveted.
