Right Flap Assembly

The assembly of the right wing flap is finished. For this one, we decided to not do the dimples. While doing a small test fit experiment, it was determined that the dimples are not needed to reduce obstruction with the wing trailing edge.

Internal Ribs

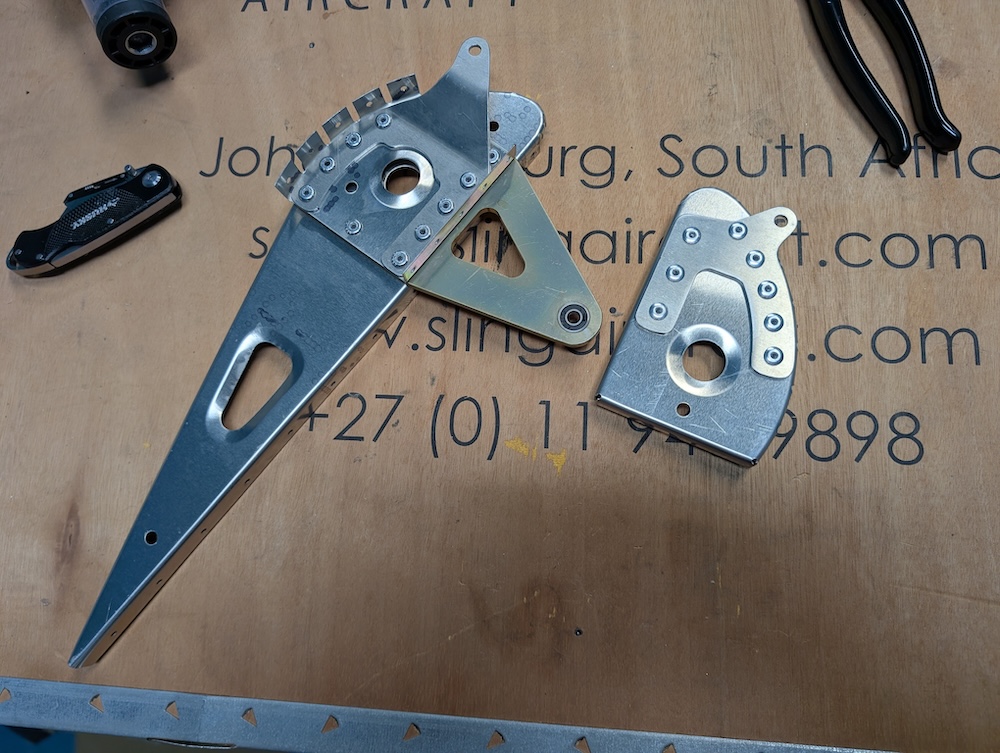

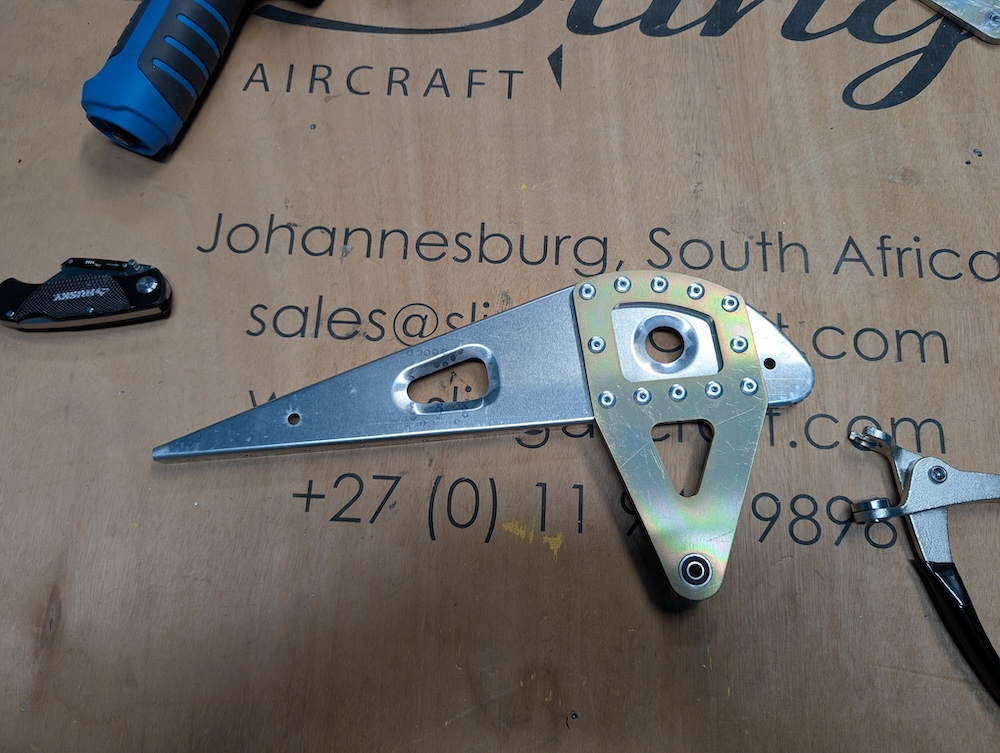

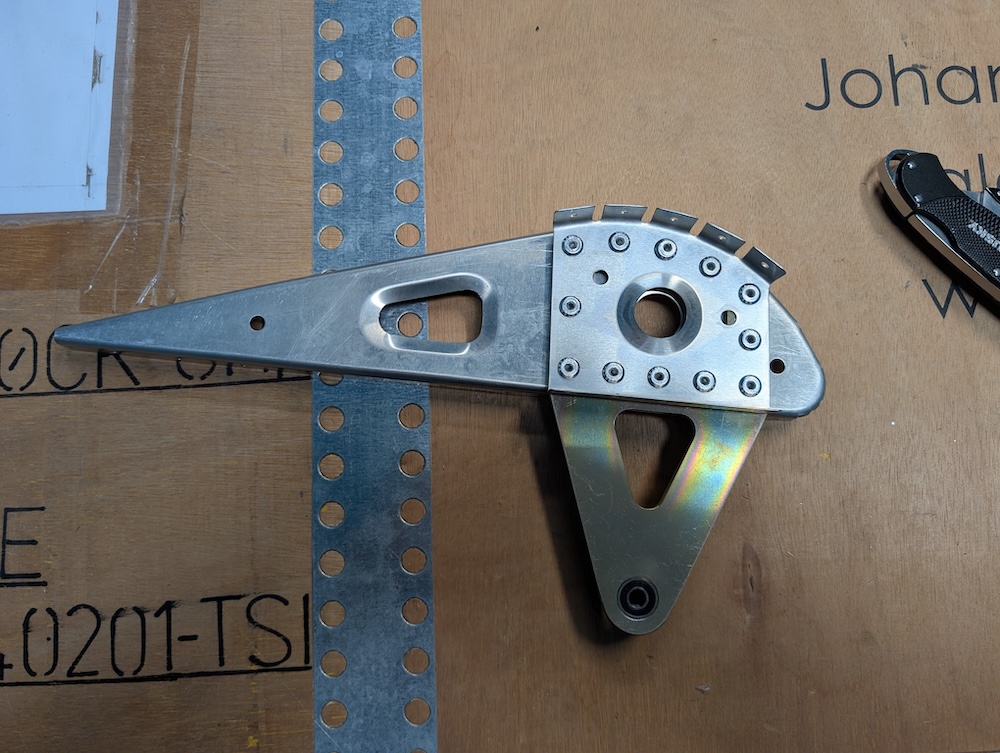

The Internal ribs of the flap required some sub-assemblies, which was pretty straightforward. Ribs which will connect to the push rod and a hinge. Mid-rib which will connect to a hinge. Outer most rib which will connect to a hinge.

Skin

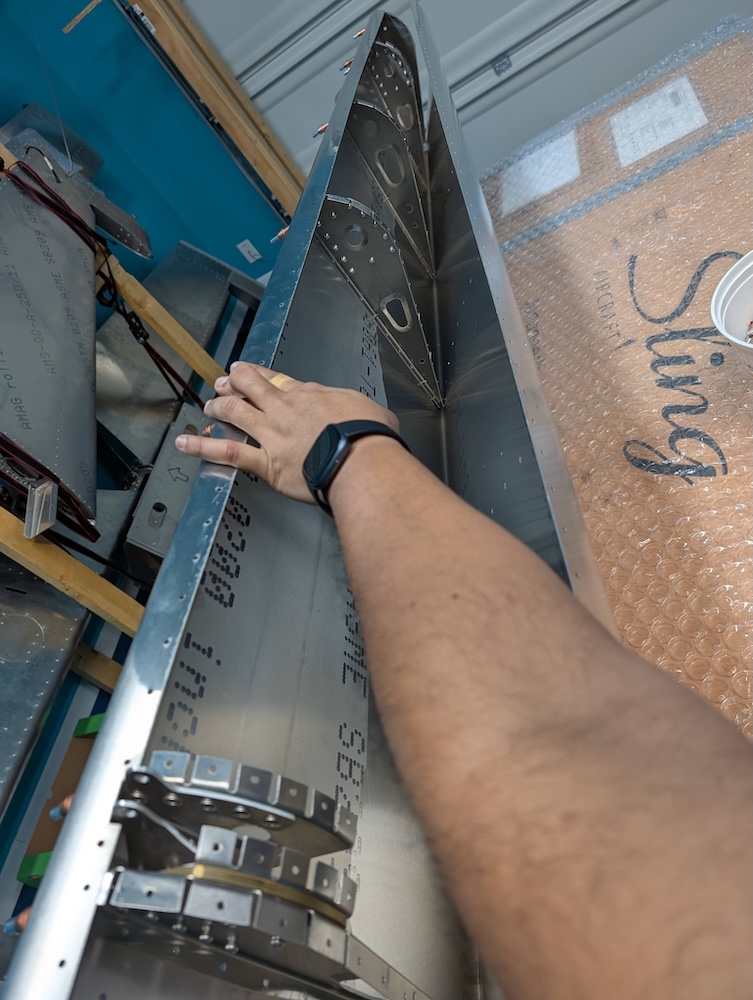

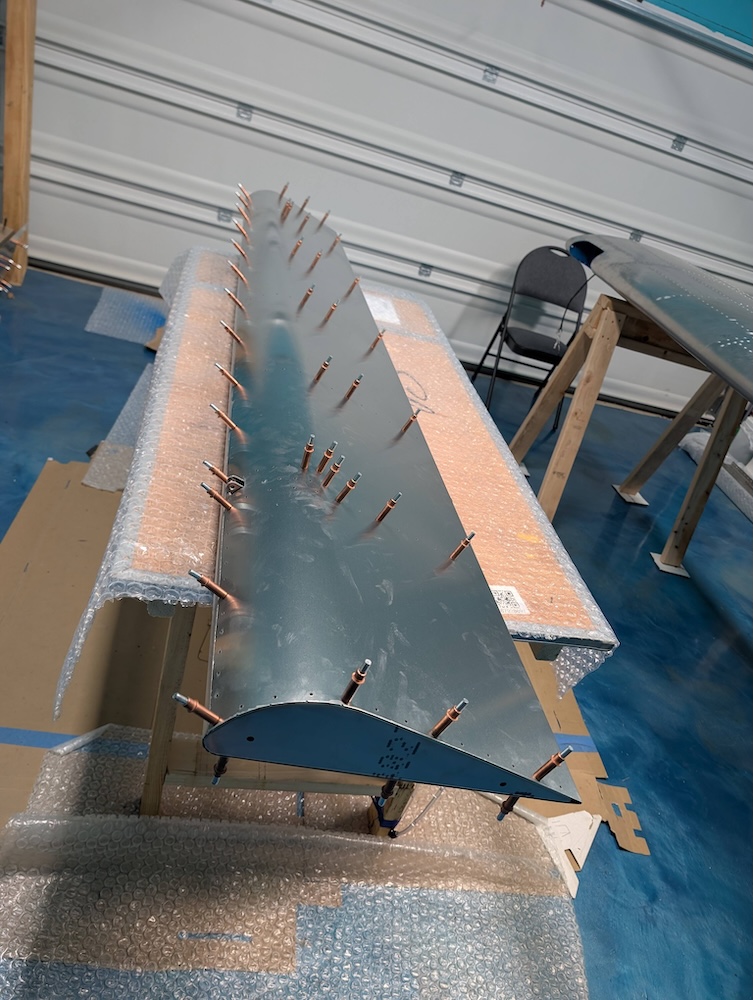

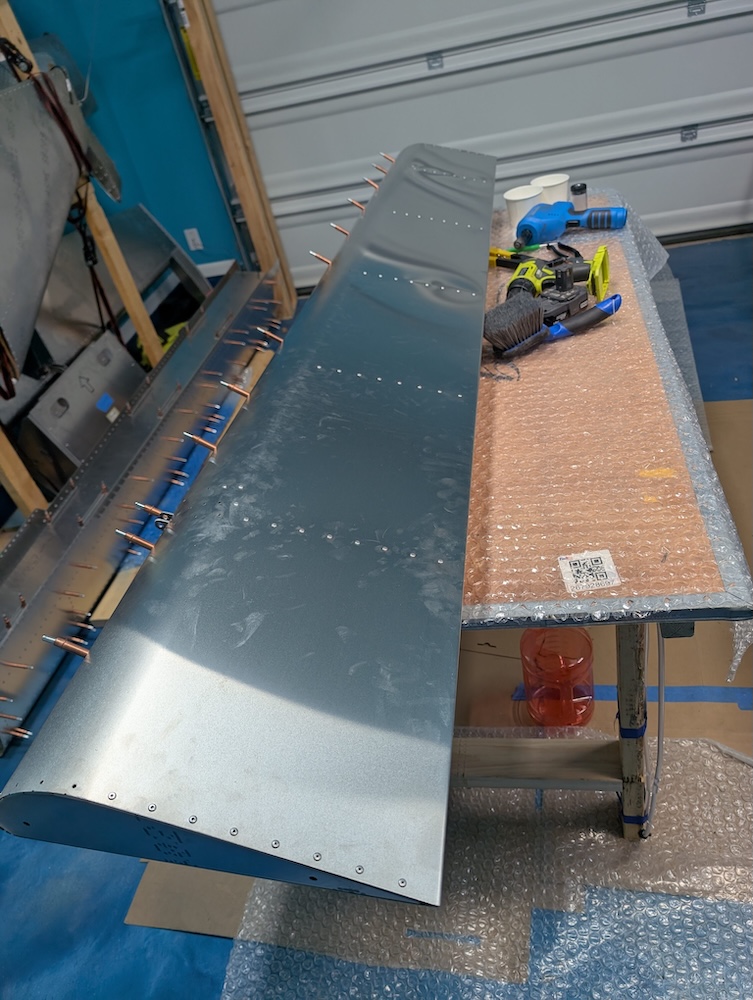

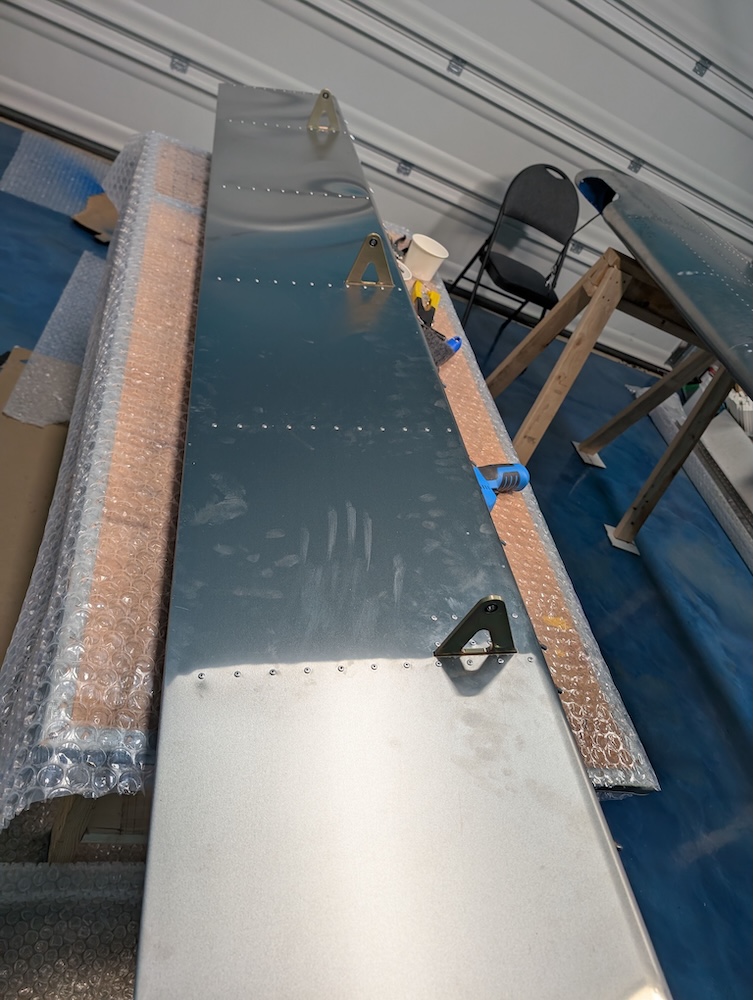

Assembling the skin was pretty straight forward, the strategy for applying clecos as well as the rivets was to start at the bottom, then at the top starting from the trailing edge to the leading edge. Clecoed at the bottom. Clecoed at the top. Riveted at the bottom. Riveted at the top.
