Wing Fuel Pumps Assembly

Assembly for both the wing fuel pumps including the fuel pump mounts, and its subassemblies have been completed. It was a pretty straightforward process, included some nylon nuts for locking them in place. A torque seal indicator was also used for some of them.

Photos

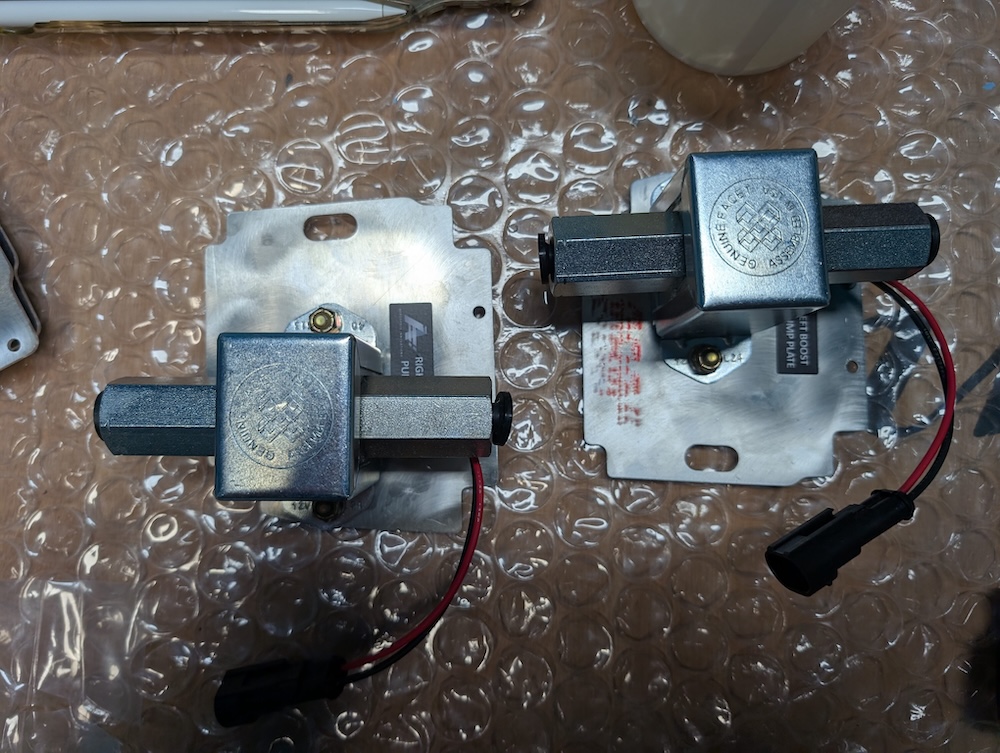

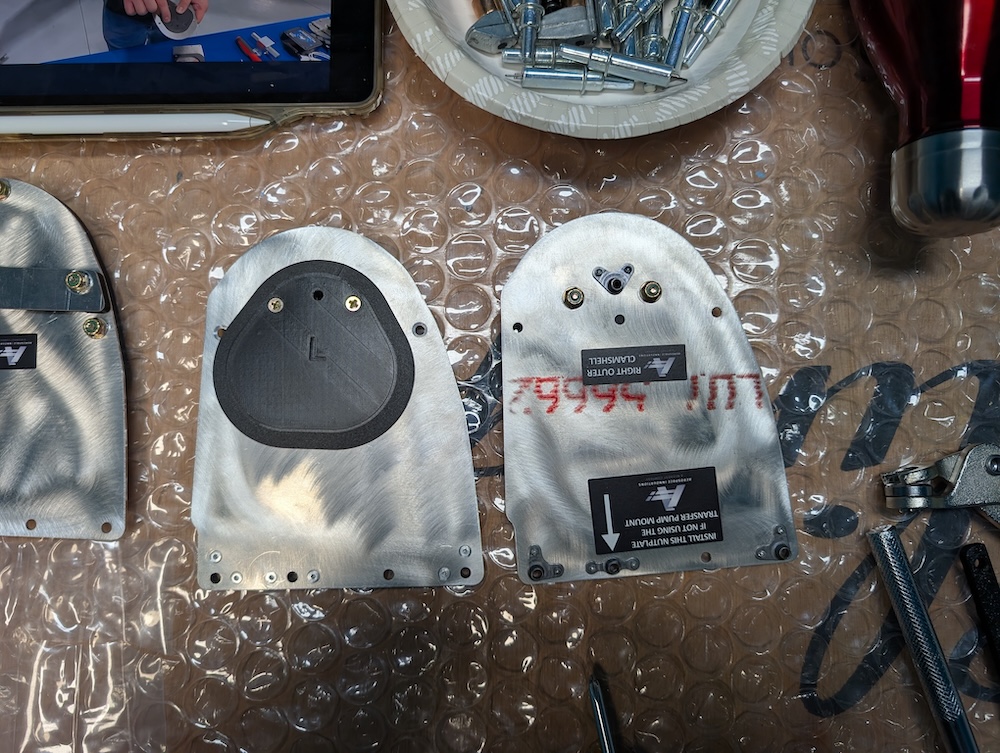

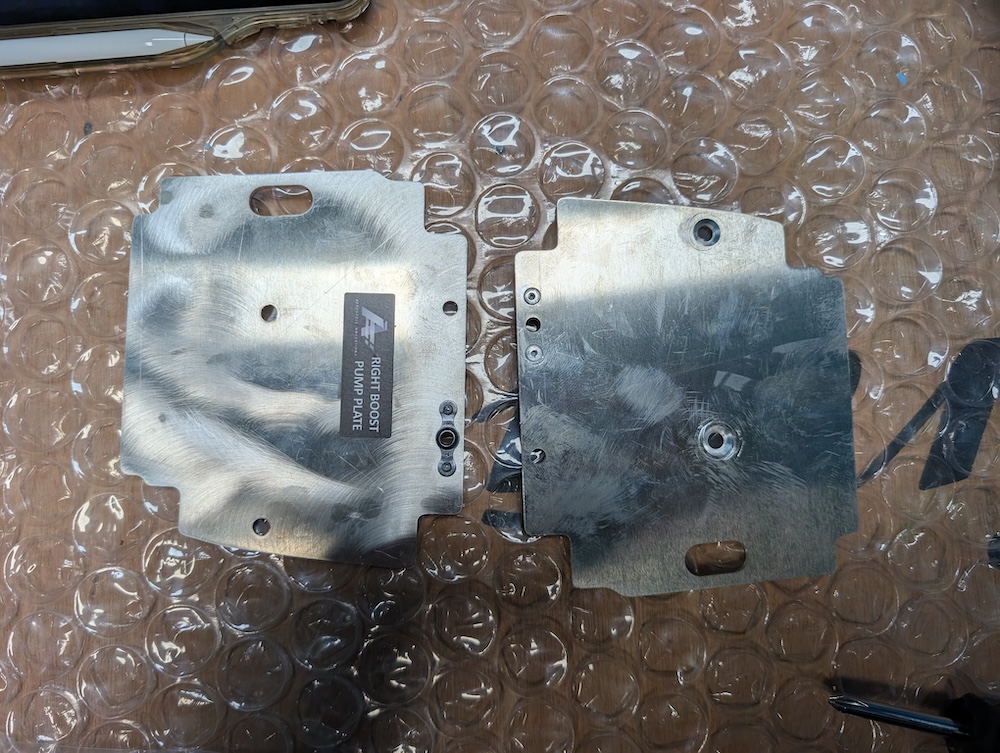

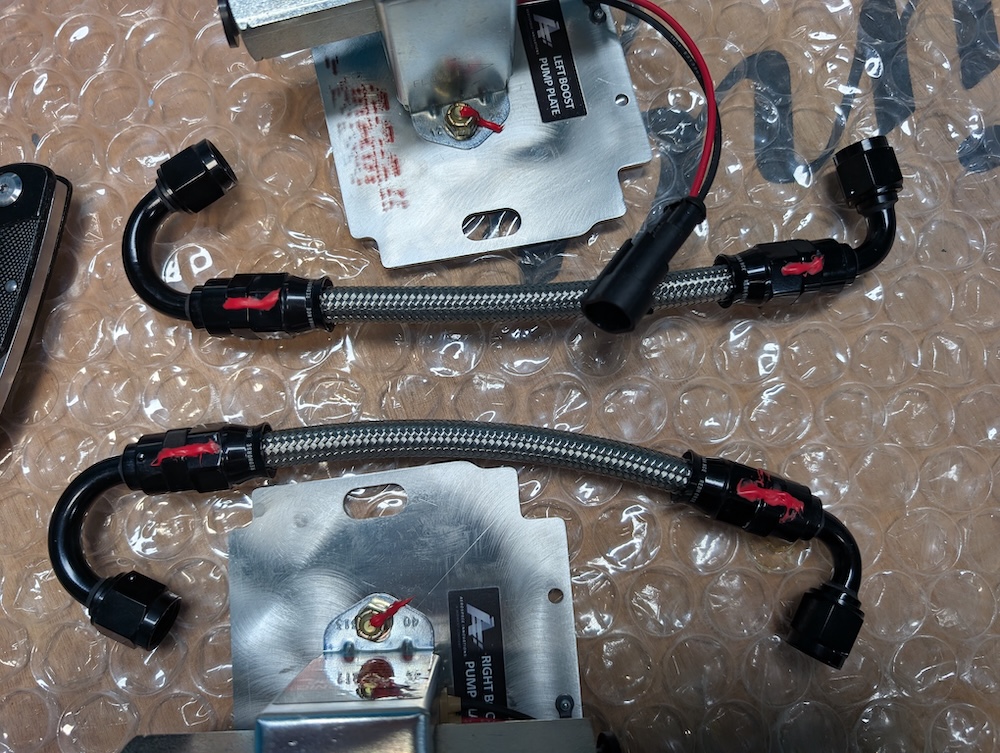

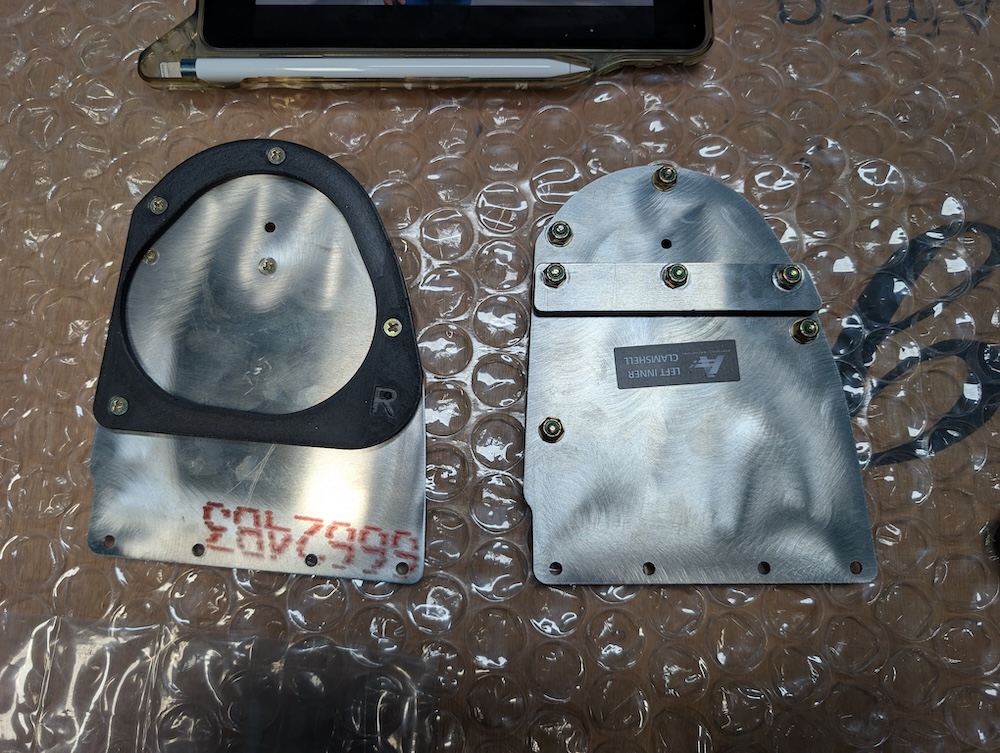

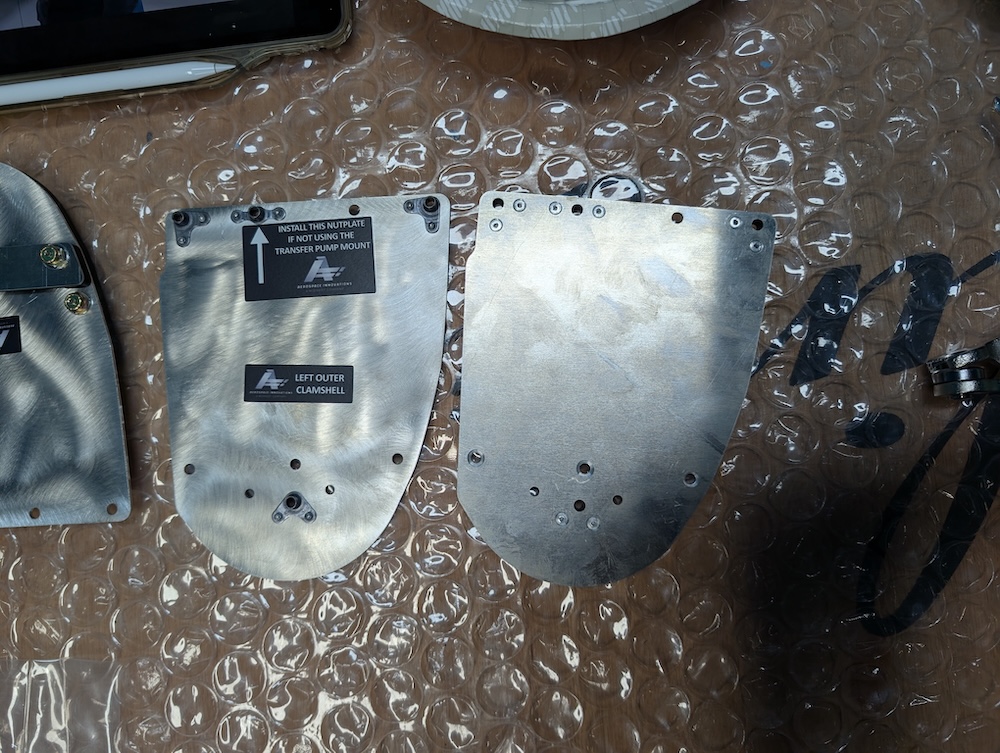

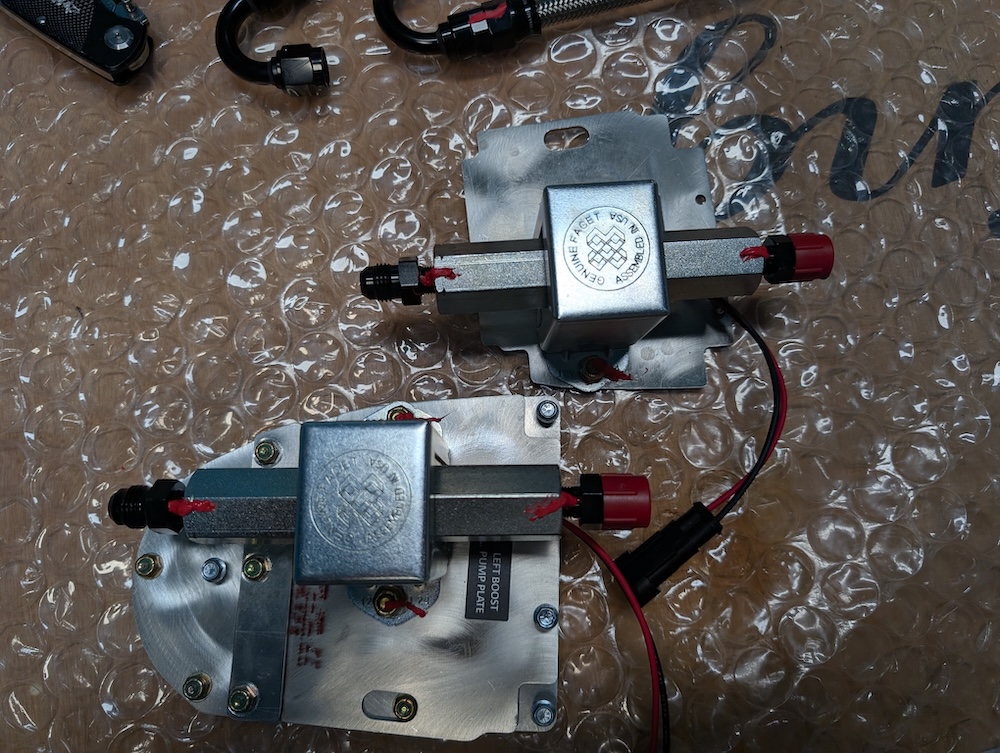

Wing mounting plates assembled. Wing mounting plates assembled. Nut plates riveted, to the mounting plates. Intermediary plates assembled. Pump plates assembled. Pumps attached to the plates. Torque seal marker on the plumbing. Pump adapters attached, torque seal marked.

Equipment

• Fuel pump mounting bracket kit: https://aerospaceinno.com/product/sling-tsi-wing-mounting-kit/
• Facet fuel pumps (x2): https://www.amazon.com/dp/B07SYBY87W
• Pump fitting adapters (x2): https://www.amazon.com/dp/B09TT9TLD6
