Wing Tip Lights Preparation

Both the wing tips were prepped for installing the lights later.

Posted
By Hersh Amin
1 min read
Wing Tip Lights Preparation

Both the wing tips were prepped in order to install the nav/strobe/position lights later.

Photos

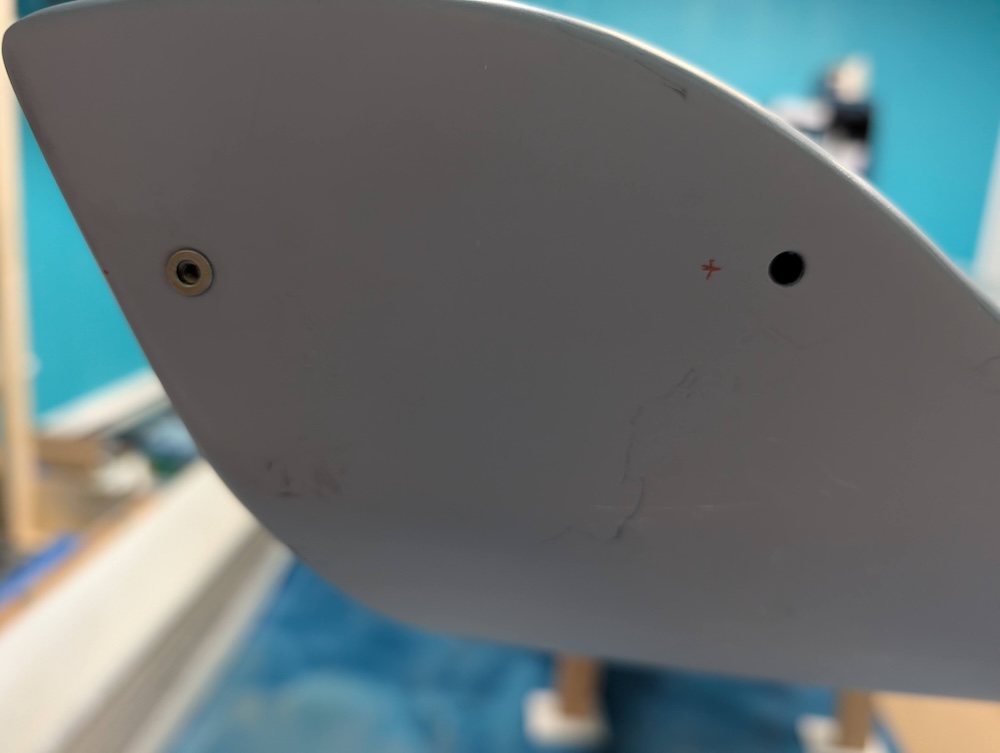

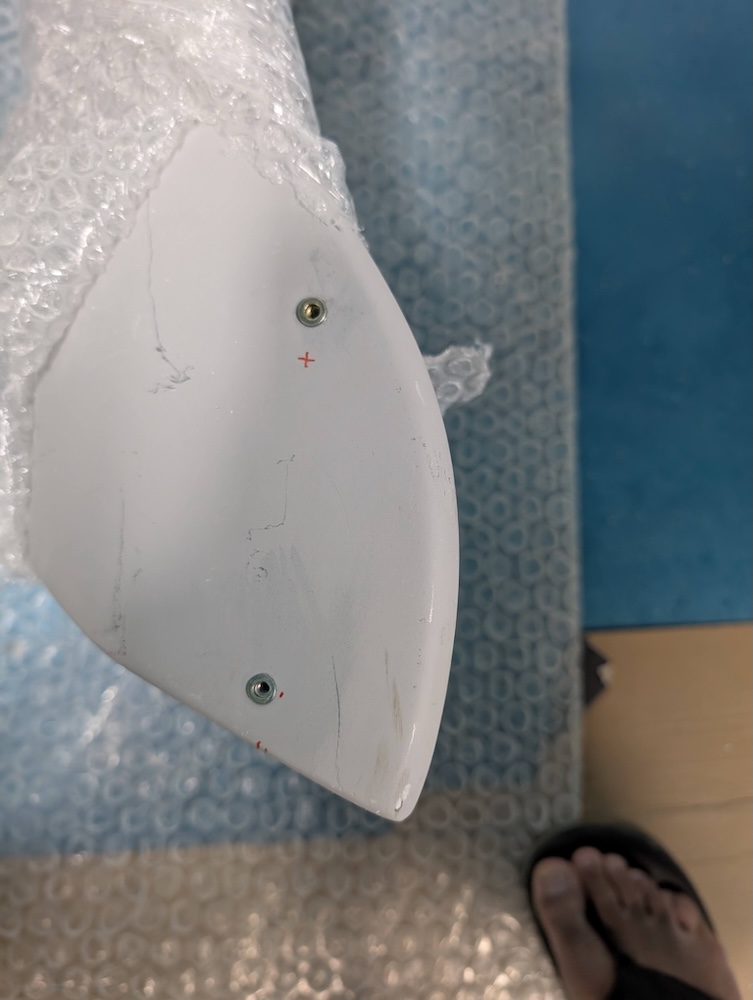

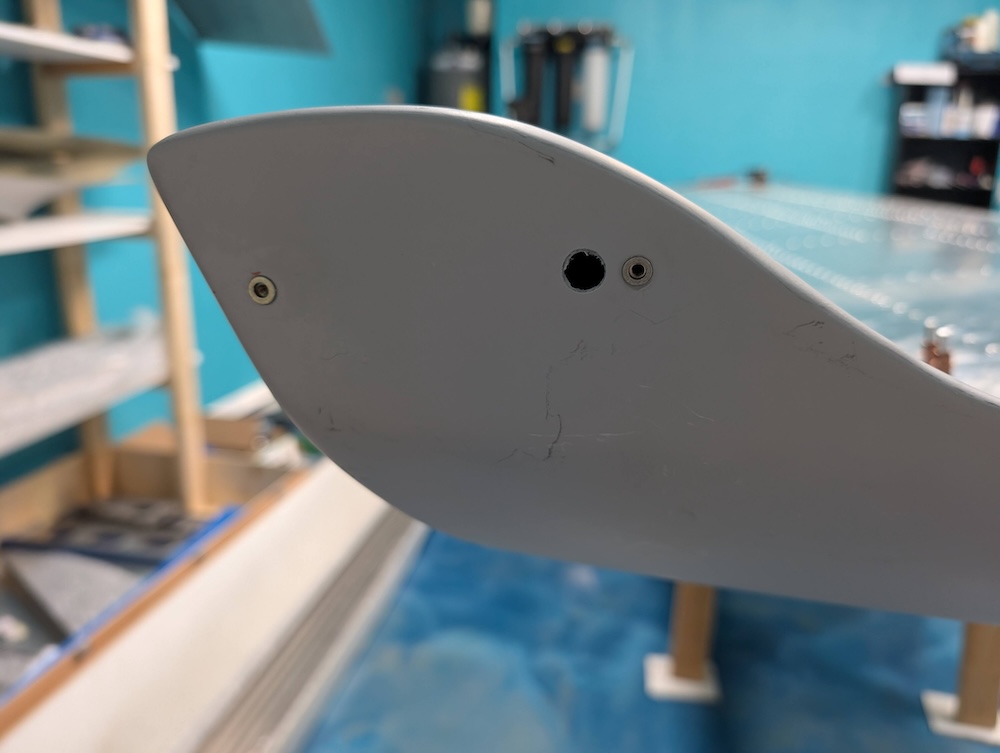

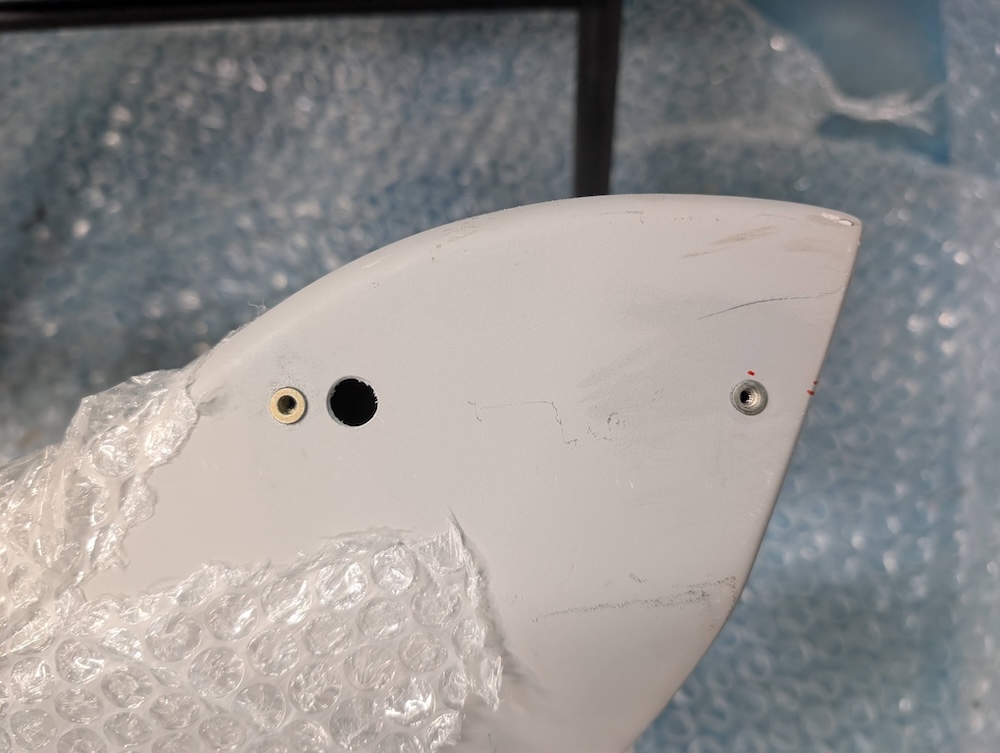

Holes were drilled and M3 rivnuts were installed in them using a steel epoxy, for light mounting purposes. Additionally, a wiring holes was also drilled in between, according to the specs required for the Aveo wing tip lights. lights-1 Holes drilled with some rivnuts installed, right wing tip. lights-2 Holes drilled rivnuts installed, left wing tip. lights-3 Wiring hole drilled, right wing tip. lights-4 Wiring hole drilled, left wing tip.

Wing Tip Lights

We are using Aveo Powerburst Daylite nav/strobe/position lights: https://www.aircraftspruce.com/catalog/pnpages/05-26589.php
