Center Fuselage Rear Spar

The center fuselage rear spar was built up on the bench. The photos follow the build sequence. It has been some time, since I was able to work on the airplane due to day job.

Photos

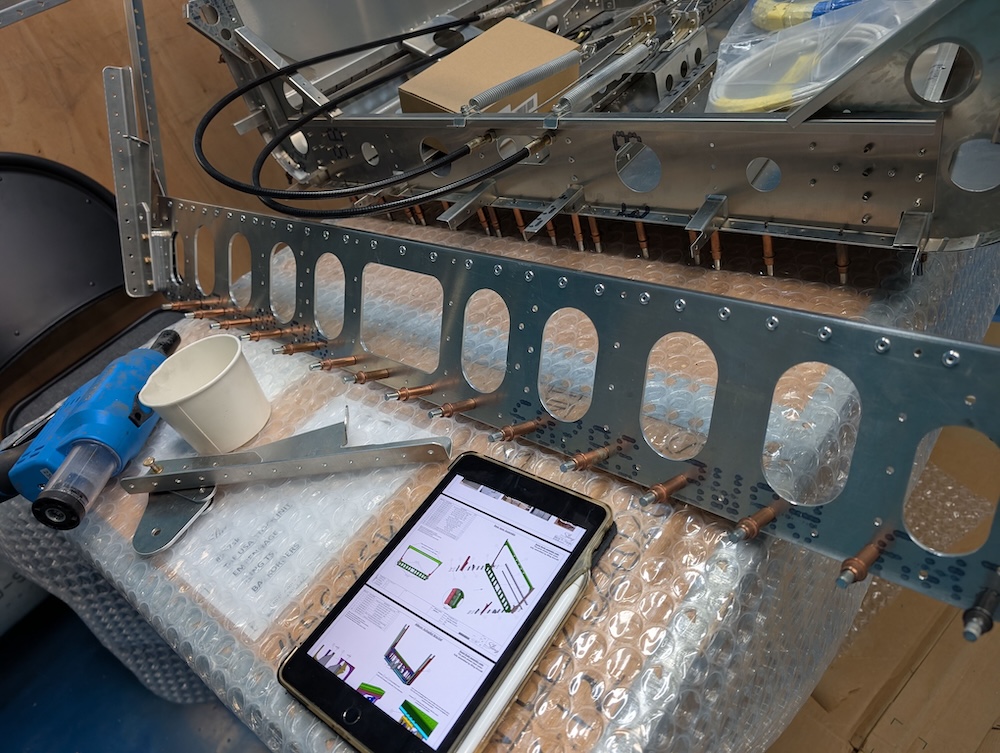

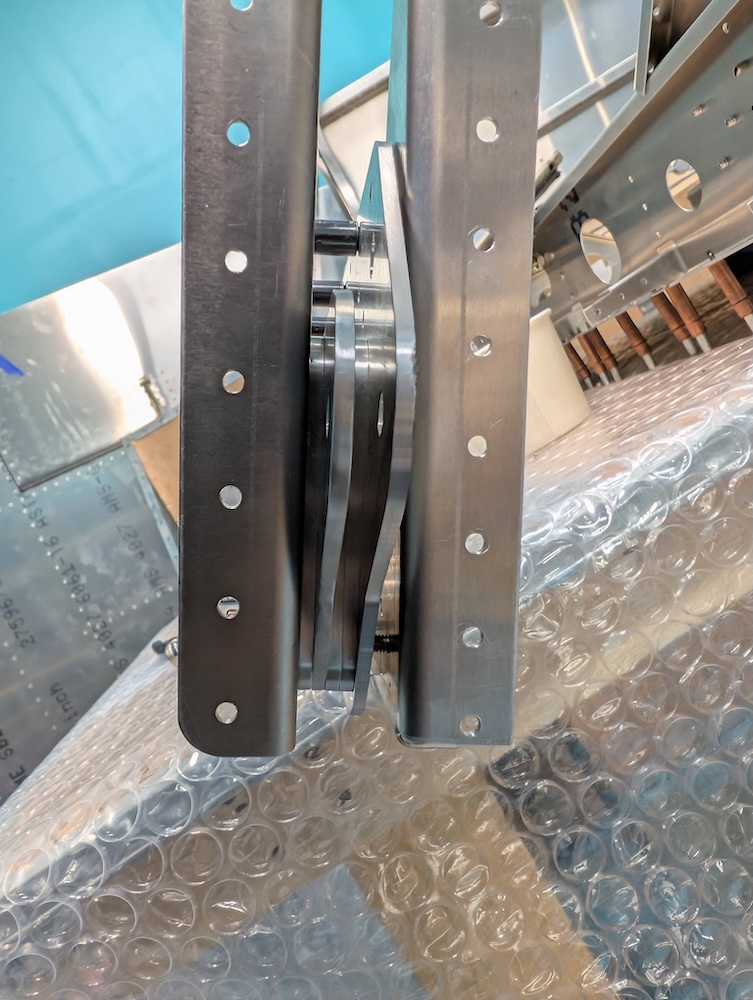

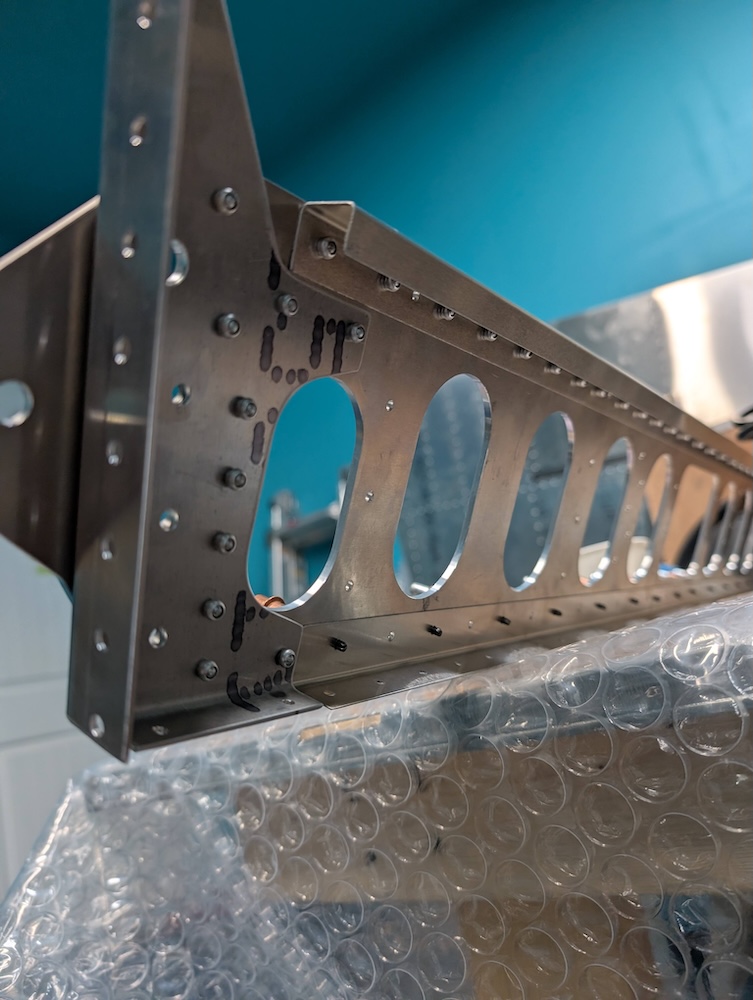

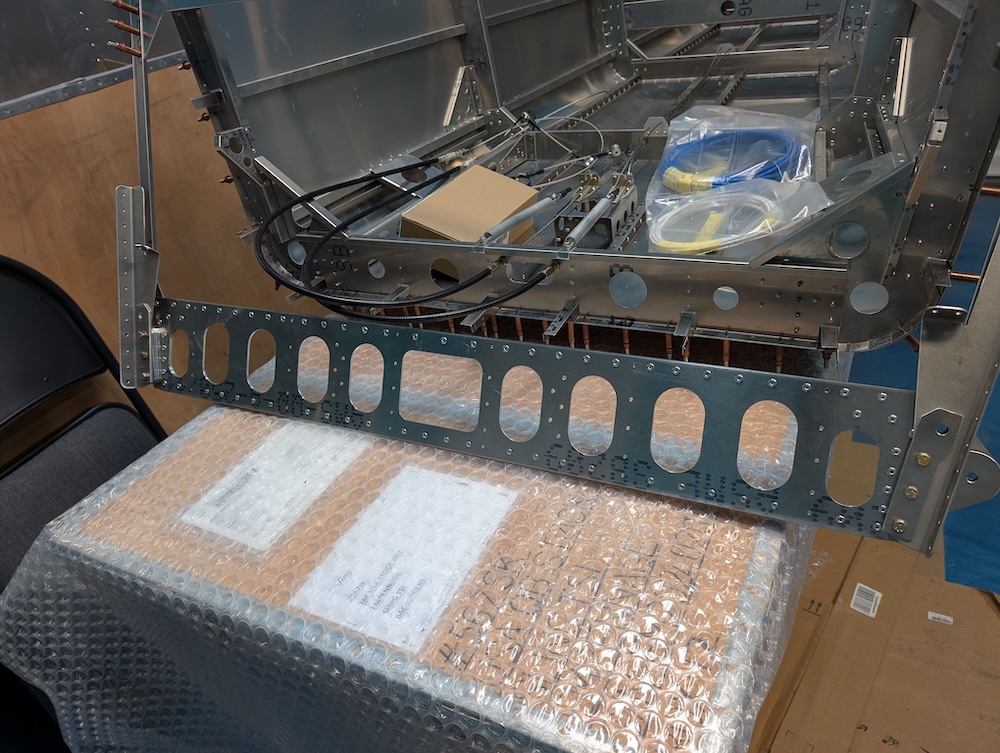

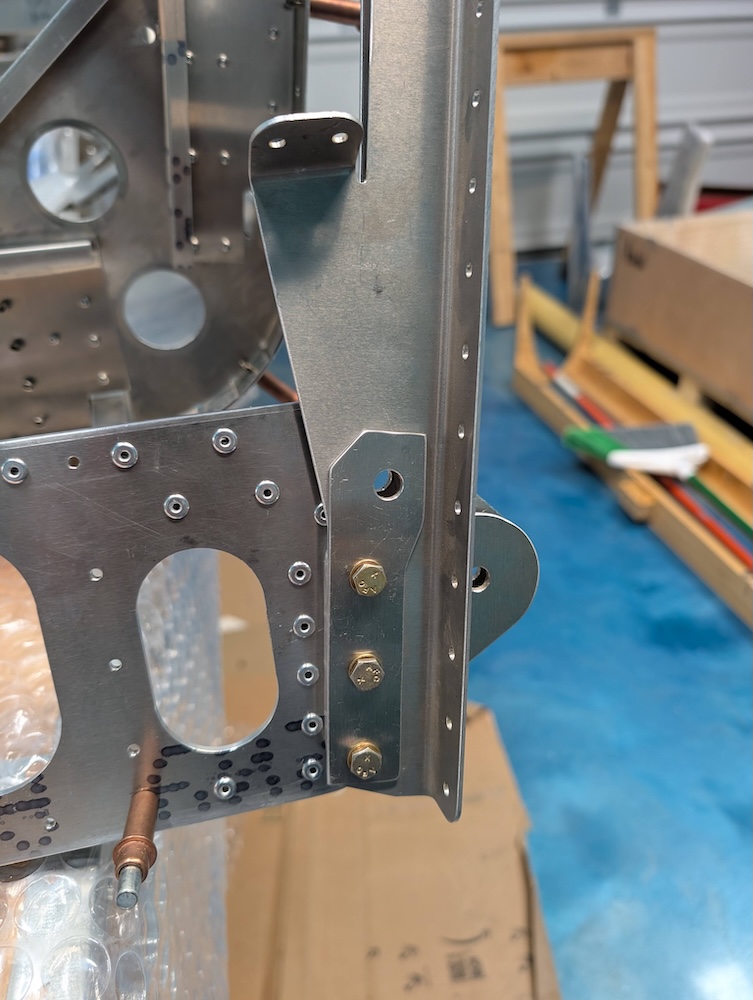

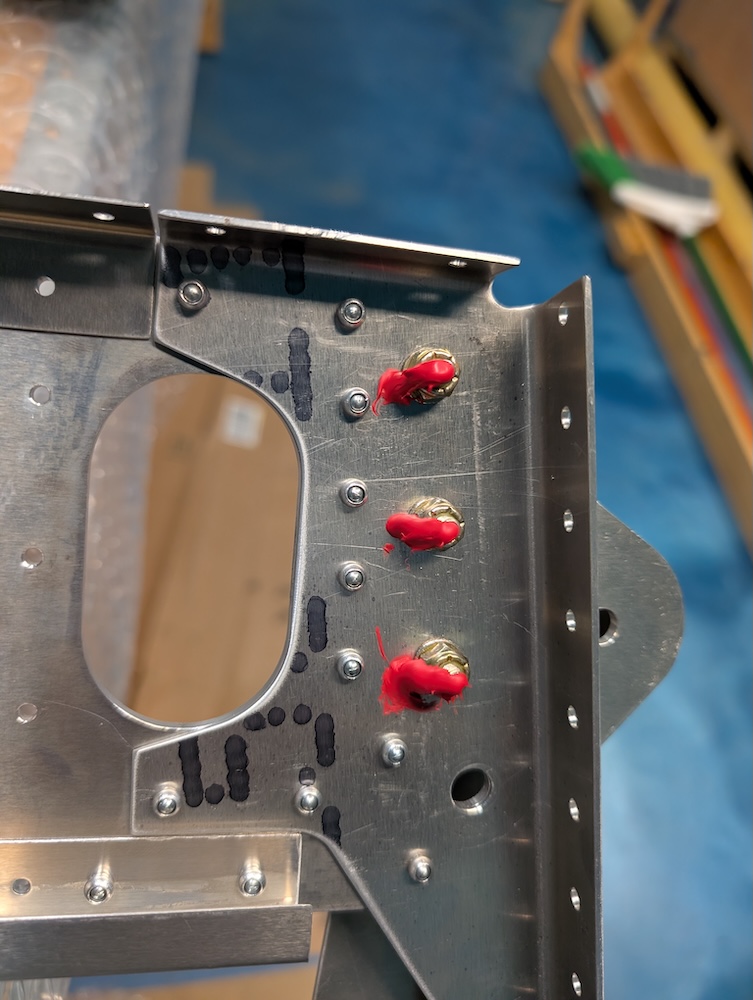

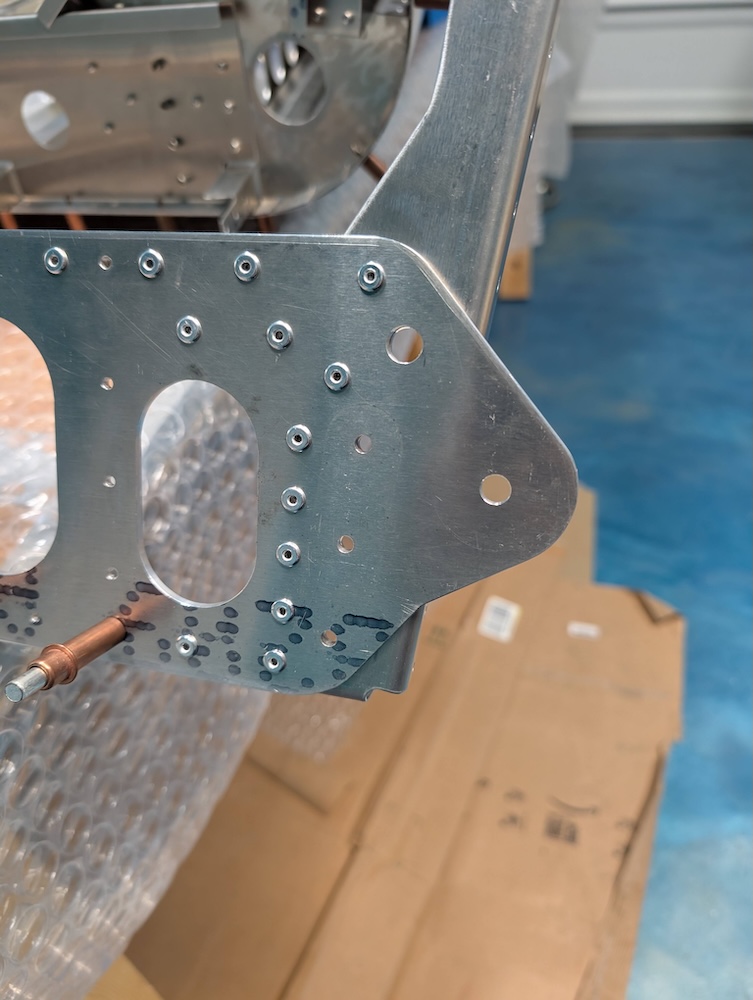

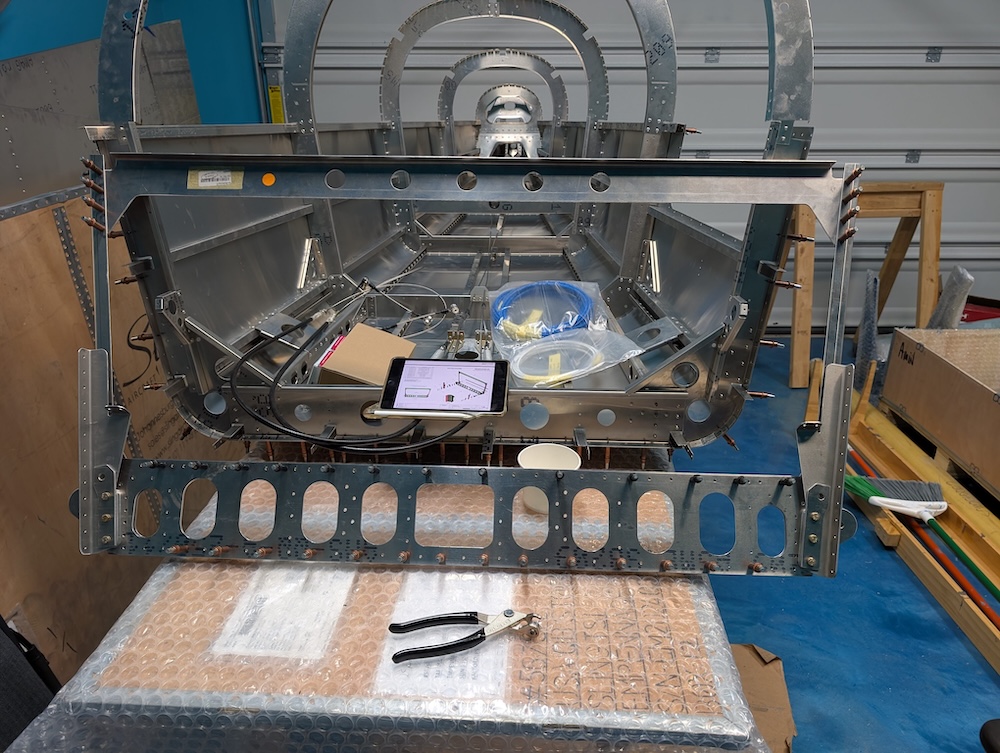

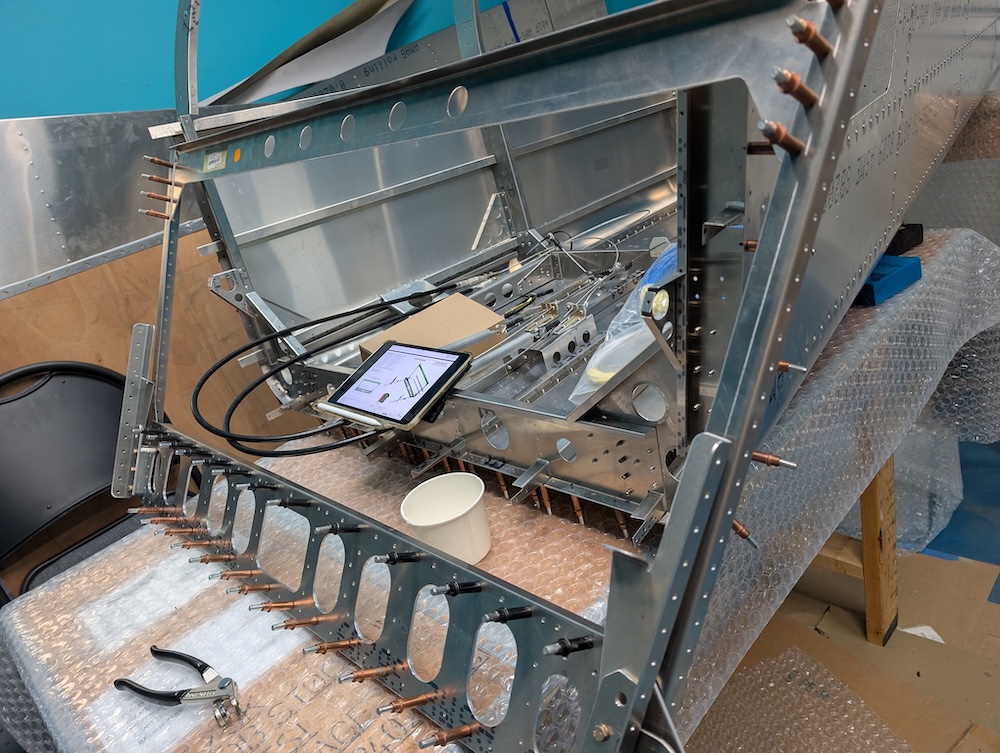

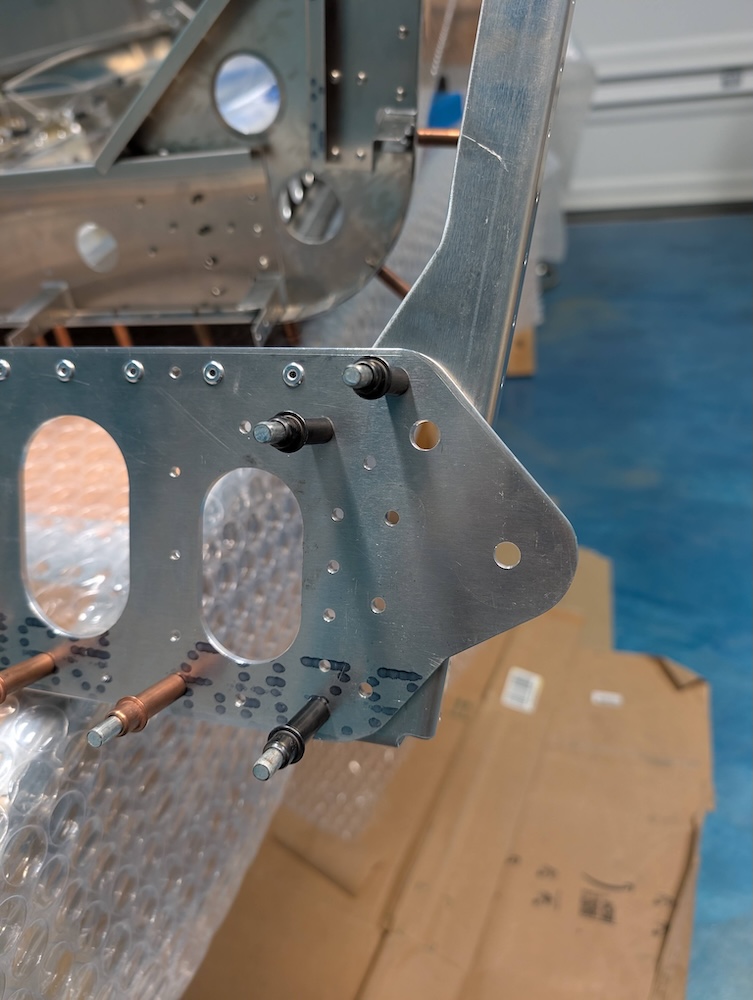

Rear spar assembly, temporary set using clecoes. Rear spar assembly, temporary set using clecoes. Side view detail of the assembly. Top section of the spar riveted. Side section of the spar clecoed. Side section of the spar riveted. Side section of the spar riveted. Side section of the spar bolted for wing attachment points. Side sections of the spar assembly for wing attachment points, plus everything riveted. Torque seal applied to the side section bolts.
